Autel MaxiService VAG505 Scan Tool Autel VAG505 Code Reader

Autel MaxiService VAG505 Scan Tool for VW/AUDI/SKODA/SEAT since 1996. Autel VAG505 Code Reader only english version. Autel MaxiService VAG505 Scan Tool for VW/AUDI/SKODA/SEAT support erases Diagnostic Trouble Codes.

Autel MaxiService VAG505 Scan Tool Autel VAG505 Code Reader

Autel MaxiService VAG505 Scan Tool for VW/AUDI/SKODA/SEAT

Language:English only

Autel MaxiService VAG505 Specification:

Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
External Power: 12.0 to 18.0 V power provided via vehicle battery
LengthWidthHeight: 199 mm (7.83”)104.5 mm (4.11”)37.5 mm (1.48”)
Main unit Weight: 0.28kg(without wire),0.484kg(with wire)

Autel VAG505 Feature & Functions:

1. Works with Volkswagen, Audi, Seat and Skoda vehicles sold worldwide since 1996
2. Reads and erases Diagnostic Trouble Codes (DTCs) of almost all the systems
3. Resets Oil Service Light, service mileage and service intervals
4. Turns off MILs of engine, airbag, ABS, A/T and most other systems
5. Supports ALL 10 test modes of the latest J1979 OBD II test specs, including Read Codes, Erase Codes, Live Data, Freeze Frame, I/M Readiness, O2 Mon. Test, On-Board Mon. Test, Component Test and Vehicle Information
6. Replaces and recalibrates brake pads safely
7. Data graphing
8. Troubleshooter codes tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
9. TF memory card for data backup and software update.
10. Free online software updates
11. Prints data via PC

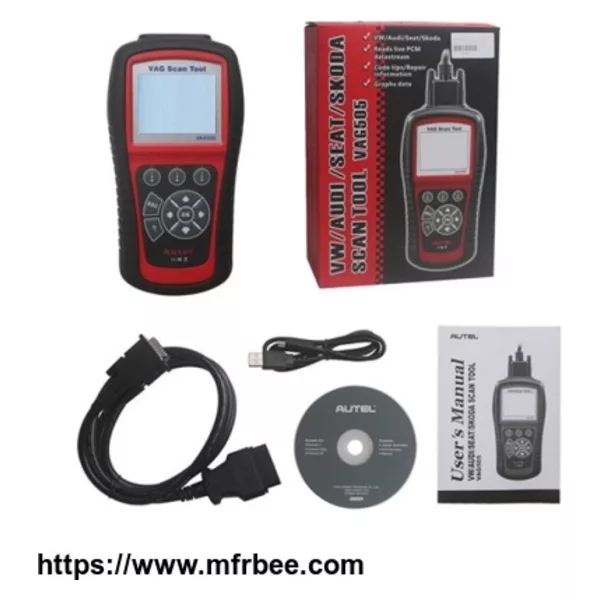

Autel VAG505 Package List:

1pc X VAG505 Main Unit
1pc x Micro SD Card
1pc x OBDII Cable
1pc x USB Cable
1pc x User's Manual
1pc x CD
1pc x Protective Nylon Bag
