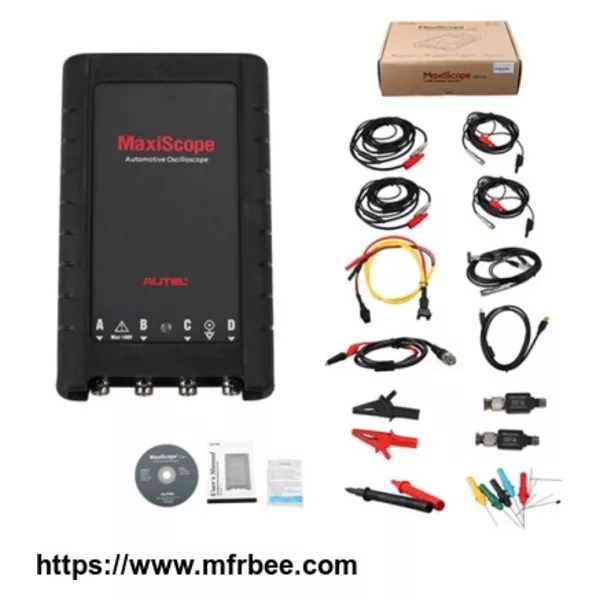

Autel MP408 4 Channel Oscilloscope Autel Maxiscope MP408

Autel MP408 4 Channel Oscilloscope Works with Maxisys Tool. Autel Maxiscope MP408 is a PC based 4-channel automotive oscilloscope. Autel MaxiScope MP408 4 Channel Automotive Oscilloscope works in combination with your PC or MaxiSys Tablet.

---

Autel MP408 4 Channel Oscilloscope Autel Maxiscope MP408
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Features and Functions:
Features one-click auto setup of voltage scale and time base
Works on all makes and models of modern vehicles
Compatible with LIN, CAN and FlexRay data bus standards
Reads and displays electrical signals in high resolution waveforms
Allows manual editing of measurement parameter display
Records and plays back waveform data
Features color coded 4-channel control panel
Intuitive UI design features easy trigger point adjustment and real time scale info display
Direct power supply through USB connection
Portable design with strong housing and protective rubber boot
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Specifications:
Vertical resolution:12 bits
Channels:4
Bandwidth:20MHz
Accuracy:1%
Sensitivity:10mV/div to 20V/div
PC Interface:USB 2.0 – Cable supplied
Power Requirements:Powered from USB port
Input Ranges (full scale):±v50mV to ±100V in 11 ranges
Input Impedance:1MΩ in parallel with 22pF
Input Type:Single-ended, BNC connector
Input Coupling:Software selectable AC/DC
Overload Protection:±200V on single input
Buffer Memory:32M samples shared among active channels
Waveform Buffer:Up to 1000 waveforms
Timebase Ranges:100ns/div to 1000s/div
Operating Temperature Range:0°C to 50°C (15°C to 40°C for quoted accuracy)
Storage Temperature Range:-20°C to +60°C
Storage Humidity Range:5% to 95%RH, Non-condensing
Dimensions:190X115X38mm
