Expanded Wire Mesh
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
usage：
Expanded Steel/Aluminium Sheet can be used as steel reinforcement materials in petroleum, chemical industry and building decorations, fencing for road, railway, civil building, water conservancy's
construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding etc.
Material：Expanded metal mesh can be made from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh, expanded
stainless steel, expanded nickel and other metal.
Features：Thickness available from 0.5mm to 8mm.
Weaving method：stamping
Other：any special request is available.
We have been engaged in producing and selling of expanded metal mesh for over 10 years. Expanded metal mesh can be made from a wide range of materials, chiefly expanded steel mesh, aluminum
expanded metal mesh, expanded stainless steel, expanded nickel and other metal , as steel reinforcement materials in petroleum, chemical industry and building.
Basic parameters:
sheet thickness: 0.25 - 4.0 mm
sheet width: up to 1250 mm
aperture size: 2.5x6 mm to 25x75 mm
Sheet width and length of an aperture can be selected individually
Arch offers expanded metals made in Stainless Steel, Aluminum, Iron. Uses in industrial plants, as fencing or reinforcing materials in floors, inclines, closings, pallets, stairs, etc.

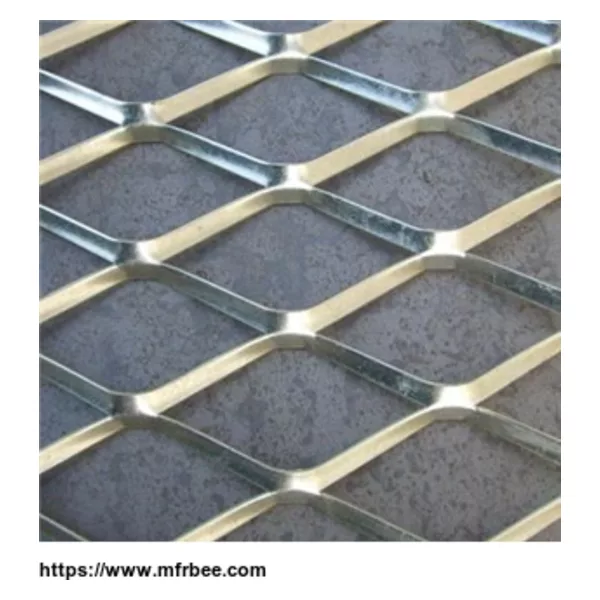

Expanded metal is similar to perforated metal, but it has been cut, rather than punched, and stretched into a shaped framework. Materials out of which expanded metal is made
include sheets of steel, stainless steel, aluminum, tin, copper and plastic. Flattened expanded metal has been cold rolled to reduce thickness and increase surface smoothness. Using expanded metal
is an ecologically-minded approach, as it is elaborated from discarded raw material. Expanded metal is basically transparent, has high resistance and excellent mechanical properties and is an
excellent conductor. It can be made out of non-metal products such as plastic, which then makes it an insulator.
Standard Expanded Steel/Aluminium Sheet fall in grades as follows:
| specifications |
width (m) |
length (m) |
weight (kg/m 2 ) |
|||
| mesh thickness(mm) |
distance short(mm) |
distance long(mm) |
strip(mm) | |||
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Africa,Americas,Asia,Emerging Markets
- Founded Year:1996
- Address:Room2919,,Wanda Plaza,Apartment 1,South Jianhua Street#136
- Contact:GuoMark
