Autel AutoLink AL609 Autel AL619 AutoLink OBDII Scanner

Autel AutoLink AL609 Works on ALL 1996 and newer vehicles. Autel AL619 AutoLink OBDII Scanner only support english. AutoLink AL609 code reader is a OBDII ABS SRS scan tool.

Autel AutoLink AL609 Autel AL619 AutoLink OBDII Scanner

Supported Languages:English

Autel AutoLink AL609 Vehicle Coverage:

For GM, For Ford, For Chrysler, For Audi, For Abarth, For Alfa, For Benz, For BMW, For Bentley, For Bugatti, For Dacia, For EU Ford, For Fiat, For Jaguar, For Lancia, For Land Rover, For Mini, For Maybach, For Renault, For Seat, For Skoda, For Smart, For Sprinter, For VW, For Volvo, For Peugeot, For Citroen, For Acura, For Honda, For Hyundai, For Infiniti, For Kia, For Lexus, For Mitsubishi, For Subaru, For Mazda, For Nissan, For Scion, For Toyota.

* For Abarth, Alfa, Dacia, For Fiat, Lancia, For Renault, For Peugeot, For Citroen are only For AL609 EU

Autel Autolink AL609 description

The AutoLink AL609 scan tool is built to help you determine why the Check Engine Light or ABS warning lights are on. The tool offers the same features as our AL519, but comes with the added benefits of ABS system diagnosis, code reading & clearing, with potential fault code explanation. A very powerful tool for body shops and specialty shops that need quick testing for ABS, the AutoLink AL609 is a must for any technician.

Autolink AL609 Features

1. Diagnoses ABS system codes on most 1996 and newer major vehicle models.
2. Turns off Malfunction Indicator Light (MIL) and ABS warning lights, clears codes and resets monitors
3. Works on ALL 1996 and newer vehicles (OBDII & CAN)
4. Retrieves generic (P0, P2, P3 and U0), manufacturer specific (P1, P3 and U1) codes and pending codes
5. Views freeze frame data
6. Reads, stores and playbacks live PCM datastream and live sensor data
7. Graphs data
8. Retrieves vehicle information (VIN, CIN and CVN)
9. Troubleshooter code tips guide technicians to the root cause of trouble codes faster
10. Multilingual menu and DTC definitions - English, Spanish and French
11. TF memory card for data backup and software update
12. Internet updatable and upgradable
13. Prints data via PC

Autel Autolink AL609 Specifications

Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 F°)
Storage Temperature: -20 to 70°C (-4 to 158 F°)
External Power: 8.0 to 18.0 V power provided via vehicle battery
LengthWidthHeight: 199 mm (7.83")104.5 mm (4.11")37.5 mm (1.48")
Weight: 0.28kg (0.75lb, without wire) or 0.484kg (1.3lb, with wire)

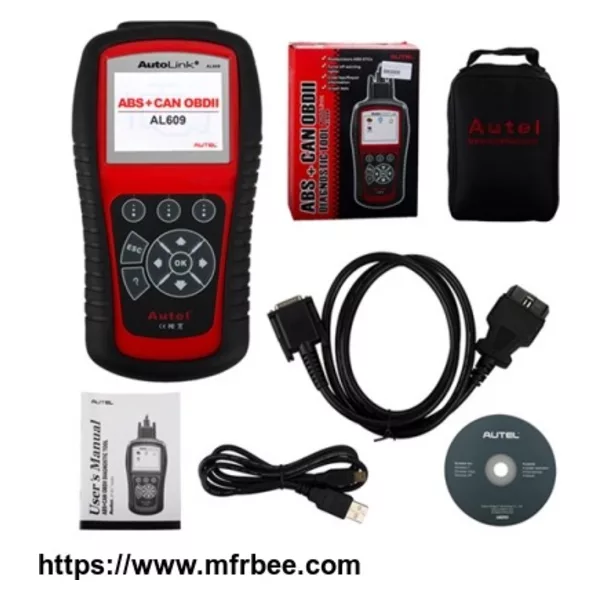

Autolink AL609 scanner Accessories

1 × AutoLink® AL609 Tool
1 × User's Manual
1 × CD software
1 × USB cable
