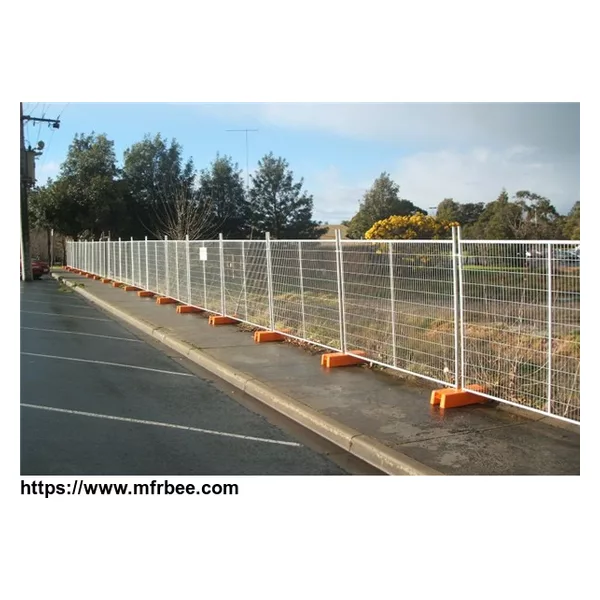

The welded wire mesh temporary fence is popular in Australia market. A standard temporary fence consist of mesh panel, Plastic/Concrete Fence Feet and Clamps.
Mesh Panel Material | Low Carbon Steel |
Wire Diameter | 3.0mm-5.0mm |
Mesh Opening | 50 x50mm,60x60mm,60x150m,75x100,75x75mm |
Frame | 25mm,32mm,38mm,40mm,42mm,48mm OD |
Pipe Wall Thickness | 1.5mm,2mm |
Panel Size (L x H) | 2100x2400mm, 1800x2400mm,2100x2900mm,2100x3300mm |
Weaving Method | Welded |
Finish | Hot Dipped Galvanized |
Remarks | customized specification is available |
Standard Sizes Products Name:Standard Welded Mesh Panel
Panel Size:2400mm(L) x 2100mm(H)
Frame:32mm O.D. – 2mm Pipe Wall Thickness
Infill Mesh Diameter:4mm
Mesh Opening:60mm x 150mm
Weaving Method:Welded
Finish:Hot Dipped Galvanized ( Pipe--42MICRONS ZINC, Wire ---28MICRONS )
Plastic/Concrete FeetThe plastic feet with bright colors are easier to see which makes them safer as they are less likely to be a tripping hazard for the public.
1.Size: 570mm x 245mm x 130mm.
2.UV5 or UV6 for sun/weather protection
3.Filled with concrete
Injection Moulded Plastic Feet Size: 570mm x 245mm x 130mm.
Blow Moulded Plastic Feet Size: 600mm x 220mm x 150mm.
Fence ClampHigh quality Temporary Fence Clamps used to secure the panels together.Heavy duty 4mm thick steel Clamps are used to join the Temp Fence panels together and to attach support stays to the panels.
Size 1:140mm length x 40mm width x 4.00mm thick
Size 2:100mm length x 40mm width x 4.00mm thick
10.00mm blots and nuts x 50mm length
Hot Dipped Galvanized: 42 microns
