CDM4161A - Pre-calibrated module for carbon dioxide

Place Of Origin: Japan

Minimum Order: 1
The Brand Name: Figaro

Packaging: N/A

Delivery: 15 Days

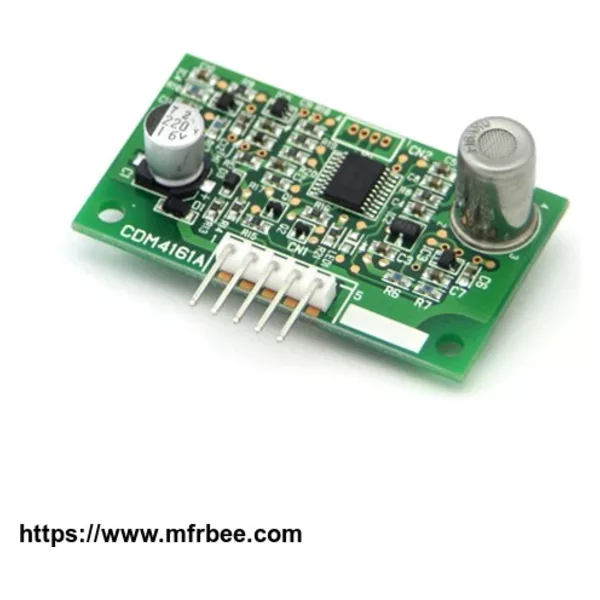

CDM4161A - Pre-calibrated module for carbon dioxide

CDM4161A is a highly miniaturized pre-calibrated CO2 unit which uses Figaro's own compact and low-power consumption solid electrolyte CO2 sensor. Due to Figaro's proprietary idea for signal processing with a microcomputer, no maintenance is required for this module. When compared with traditional CO2 sensor modules using IR sensors, Figaro's CO2 module is much more cost effective, making this module the ideal choice for indoor air quality control systems.

Features:

* Compact size

* High selectivity to CO2

* Maintenance free

* Low power consumption

* Pre-calibrated

* Low cost

Applications:

* Indoor air quality control

Specification:

Product name: Carbon dioxide (CO2) sensor module

Model No.: CDM4161A

Detection range: 400 ~ 4,000ppm

Sensor: Solid state electrolyte type

Accuracy: approx. ±20%

Power supply: 5.0±0.2V DC regulated

Power consumption: 300mW (typical)

Inrush current: 100mA (max)

Operational temperature & humidity range: -10℃~ +50℃, 5~95%RH(avoid condensation)

Storage temperature &humidity range: -20℃ ~ +60℃, 5~90%RH(pack in a moisture-proof bag)

Warm-up time: 2 hours

CO2 concentration signal: VCONC=CO2 conc/1000 (0.4~4.0V DC)

Control signal: ON: HIGH output (when CO2 conc. exceeds 1000ppm)

OFF: LOW output

Trouble signal: LOW output

Reset switch: Establishes the ambient CO2 concentration as 400ppm by HIGH input signal

Dimensions: 45 x 26 x 17mm (45 x 33 x 17mm incl. CN1)

Weight: approx. 6g
