Norcada Mid-IR DFB Lasers for Spectroscopy
NORCADA designs and manufactures single mode semiconductor distributed feedback (DFB) lasers for industrial sensing and environmental monitoring applicaons. Our DFB lasers come with two main styles
of hermetic packaging configurations designed for excellent temperature stability and wavelength tuning.
Product Features
● Integrated DFB grating provides single frequency operation
● Frequency tuning can be accomplished by adjusting either laser drive current or temperature.
● Tuning range up to 6 nm without mode hopping
● Temperature tuning control: 0.1 nm / ℃
● Drive current tuning control: 0.04 nm / mA
● Typical output power range: 2-8 mW
Packaging Options

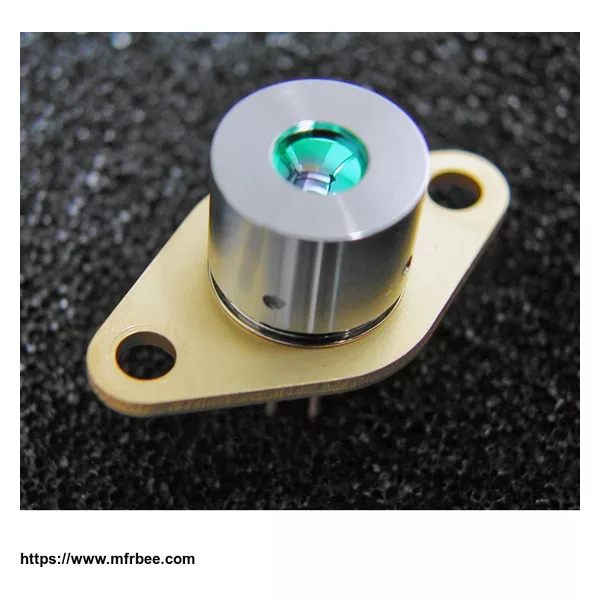

● TO-39 or TO-66 package
● Glass or Sapphire window with 7°slope
● Hermetically sealed Integrated thermoelectric cooler (TEC)
● Mounted lens for collimation
● Butierfly package with fibre coupled output
Applications
● Molecular spectroscopy
● Industrial gas sensing (TDLAS)
● Environmental monitoring
Available Wavelengths
2000nm-3500nm
Typical wavelengths for trace gas sensing applications
λ(nm) 2004 2260 2326 2334 2475 2740 3270
Gas CO2 N2O CO CO/CH4 HF H2O CH4
