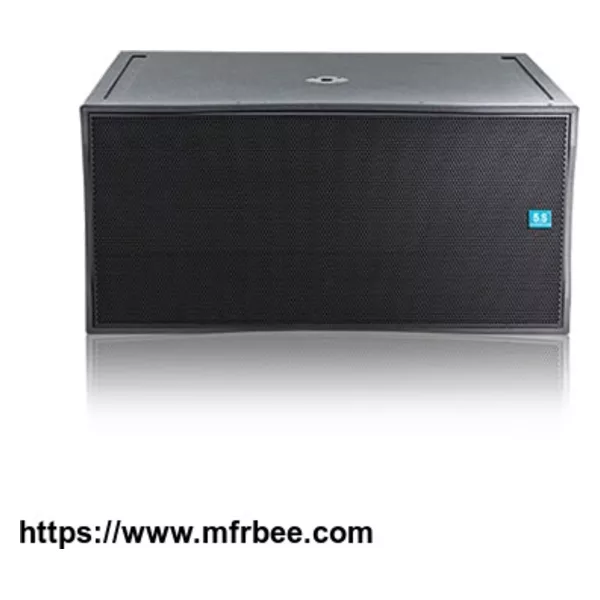

SW-215B FullRange & Bass Loudspeaker Systems

SW-215B FullRange & Bass Loudspeaker Systems

Description:

SW-215B of 5.S brand is a compact high sound pressure output and ultra-low frequency enclosure embedded in a 15” high-power low distortion unit,The bass horn is designed to bring a close and precise bass response to the wooden box,is the most ideal collocation with LY-12. This product has been equiped with most advanced unit long stroke and great magnetic force that bring a high magnetic flux as a way to increase efficiemcy. A 38mm high and 4 inch voice coil ensures 26mm/PP continuous magnatic force stroke.The most advanced carbon fiber cone ensures the unit procceed with the maximum rigidnity and inertia movement.Adopting the most heat resistant copper flat wire to reduce the power compression during the voice coil heating and to improve the quality and performance.

Applications：

Large stadiums, arenas, all kinds of performances

Entertainment venues, nightclubs, bars

Theme park and concert hall

Mobile or fixed installation

As subwoofer of other audio system

Specifications:

Type: 15"*2 bass loudspeaker FullRange Multi Using LoudSpeaker Systems

Frequency Response: 35Hz-300Hz

Rated Power: 1400W(AES)

Peak Power: 5600W

Sensitivity: 96dB

Max. System Output 101dB（Peak）

Nominal Directivity: 90° X 60°

Crossover Frequency： External crossover

Impedance： 4Ω

Connectors： 2*Neutrik TM 2+2-

Rigging： -

Product Unit

LF: 15"*2which is imported?from Italy，large magnetic circuit?design 4"（100mm）voicecoil，Rated Power：1400W

HF： -

Enclosure

Colour： Polyurea Paint /Water-based paint points (All RAL Colors)

Material： 15mm Russian Birch Plywood

Dimensions(W*H*D)： 1000mm*450mm*600mm

Weight: 64.5Kg
