Pneumatic Corner Crimping Machine LMQZ-160
Product Quick Detail
- Place Of Origin
- Jinan,Shandong
- FOB Price
- USD $5,631.00 / Piece
- Minimum Order
- 1
- Packaging
- Safe Belt Wooden Box
- Delivery
- 15 Days
Specifications
&Working material:aluminium profile, sheet material, window and curtain wall profile
&Needperfectcrimping process to get more orders
&Profile height160mmneed process
Machine Details
Technical Parameter
| Name | Parameter | Name | Parameter |
| Profile Processing Height | 160mm | Input Voltage | 220V 50HZ |
| Inner Position Corner Moving Range | 130mm | Cutter Feeding Range | 0-20mm |
| Corner Head Adjustment Range | 70mm | Air Pressure | 0.5-0.8MPa |
| General Pressure of Corner Combining | 40KN | Air Consumption | 120L/min |
| Weight | 300kgs | Dimension | 1800x1600x1300mm |

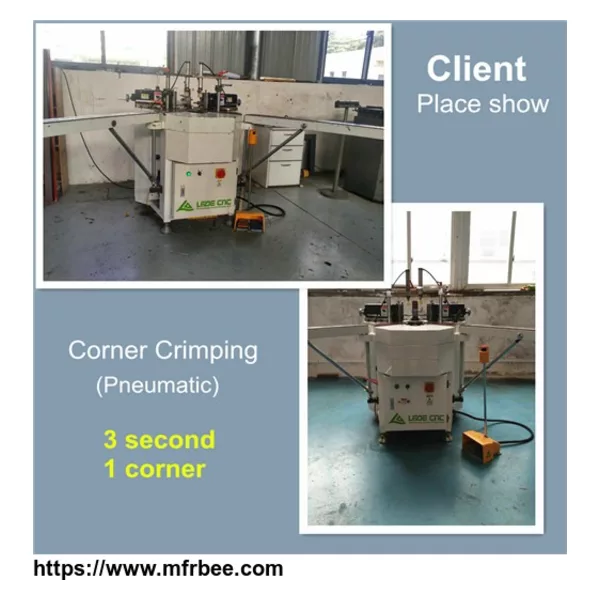

Machine Working Video-Feedback from clients is the best proof
Clients Place Working Show: https://youtu.be/Hg-7xcewozc
Machine Advantage
* Misplaced adopted in knife to rivet shaped materials without changing knife
* Air pressure drive without pollution
* Quick lock device offer fast working speed
* Knife easy to adjust with wide range
LEDE have long time cooperation customers--Feedback from clients is the best proof
About LEDE
From design engineer to workshop experience workers , keep long terms together with LEDE is our honor to have this stable and energetic team family to face each model growth process.
35years experience inQCsystem Mr.Sun Lichang set up strict every parts checking system.
Practical work is the foundation
FAQ
Q:What's the customer service/after-sales service?
Answer:
-Details manuals we provided,will give you best machines match based on your output capacity.
-Reply within 12 hours.
-One to one service.
-Engineer available overseas,providing timely technical support,not delay construction period.
-Free training in our factory.
- Local installation and training(if local service center available)
Q:What's the machines warranty?
Answer:
1 year warranty for machinery parts except consuming parts like tools / knife. During warranty we keep online and local service as you inquiry.
Q:What's the payment terms?
Answer:
-T/T,30% deposit,70% before shipment
-L/C,100% at sight.
For more details ,please contact with us
- Country: China (Mainland)
- Business Type: CNC windows & doors and curtain wall system
- Market:
- Founded Year:2007
- Address:
- Contact:Dan Wang
