300TCeramic Fiber Paper
Characteristic:
PLC and DCS controlling system.
Continuous production process.
1260 and 1430 grade ceramic fiber paper.
Density 180-200kg/m3 ceramic fiber paper.
Thickness 1mm to 6mm ceramic fiber paper.
Process Description:
The raw material is blown ceramic fiber bulk, which is easier to cut, distribute and to distribute glue evenly. The ceramic fiber bulk need to chop, cleanout, filtrate shot, to reach the required
length of paper production technics, so that the fibers can be distributed into the slurry pool evenly.
In the process of mixing fiber slurry, it needs workers to fill the fibers, matched glue, additives and mix them evenly; then to remove the shot by the water scummer many times, and transport the
slurry to the storage slurry pot, for the use of forming machine.

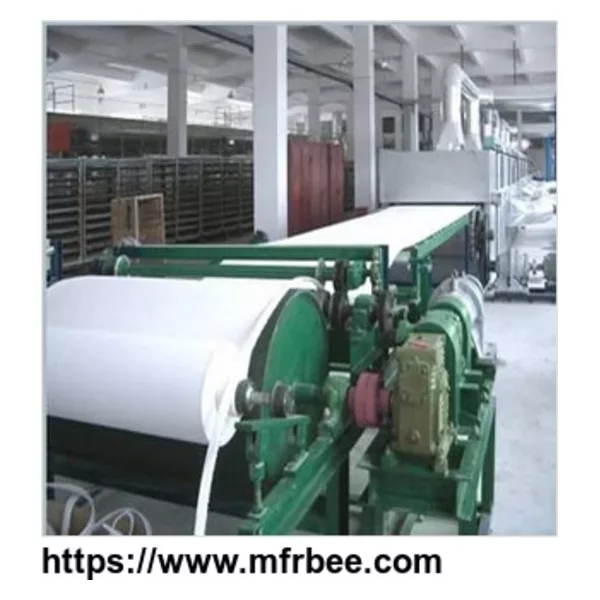

The pump deliver the matched slurry to the forming pool, the fiber slurry are absorbed onto the forming machine under the vacuum negative pressure of the forming machine, to form wet embryo, and do
the vacuum dehydration at the same time; after dehydration, the forming paper embryo are delivered to the calender by net cloth; after compression and flat, then the paper embryo are delivered to
the drying furnace for drying.
The drying furnace use the composite hot wind drying device, to dry and shape the product; After dry and shape, the products are delivered to the cutting device with the measuring length
instrument, for cutting and rolling; At last, for quality control and packing, the finished products are sent to the warehouse for dispatching.
