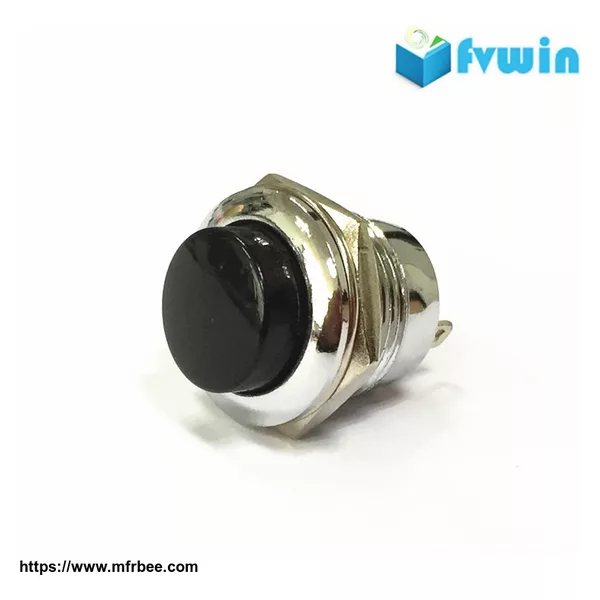

push button switch

Place Of Origin
CN
Minimum Order
2000
Packaging
1000pcs each bag
Delivery
10 Days

Specification:

Current rating: 3A 125V AC

1.5A 250V AC

Contact resistance: 500mΩ (maximum)

Insulation resistance: 500V DC, 100Mω(minimum)

Withstand voltage: 1000V AC for 1 minute

Travel:2.0±0.4mm

Operating force: 150 ±100gf

Life:10000cycles

Mechanical life:50000cycles Min

Material

base top cover:PA66

base cover: PBT

handle: ABS

Terminal: silver plated copper

Nut: kirsite

Operation temperate:0℃~85℃

Function:OFF-(ON)
