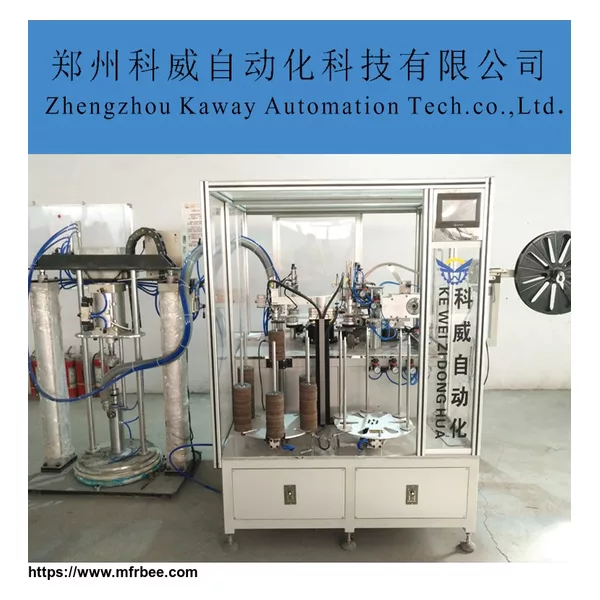

KAWAY KWQ-125/180 full automatic/semi-automatic flap disc forming machine

Performance features

1> Save labor cost

2>Improve production efficiency

3>Good quality products

4> Stable production

5>Humanization design

Technical parameters

1>Product specification:discΦ75mm-Φ180mm、T27/T29、futbal Flap size 11mm-35mm

2>Disc type:fiberglass、plastic

3> Motor: Import panasinco servo motor

4>Machine power source：Pneumatic、Electric

5>Glue pump weight:280KG

6>Glue system:AirTAC cylinder smc counter control valve

7>Glue-spread:4-30g(±0.02g)

8> Product row piece count：360°any point row sheet

9>Production speed：6500/10h

10>operator:One

11>Glue pump and host engine of max power:Servo motors5KW heating2KW

12>Rotary structure, position change smooth, accurate positioning;

13>Backing pad thickness can be detected, Adapt to a wide range of thickness tolerances of a substrate on machine use.

14>Gluing system uses heated water circulation system within the control glue quantity can be set according to the value of quantification.

15>Row sheet translational head has graduated scale display, When changing product specifications can quickly adjust the display parameters to the appropriate location.

16>The shift of the head of the chip is shown to be in a scale, and can be adjusted according to the display parameters when the product specification is changed;

17>The head can rotate angle, and has been adapted to the production of T29 specification;

18>The system can detect the presence of backing pad automatic three inspection, without matrix tips;

19>In the process of the trap, the plastic index motor, the glue to the motor, the row of the machine automatically unlock;

20>Guide rail directly into the head of the dust and ash W - type slider wear smaller and more durable;

From design, installation, training, production, quality monitoring, testing and other professional guidance
