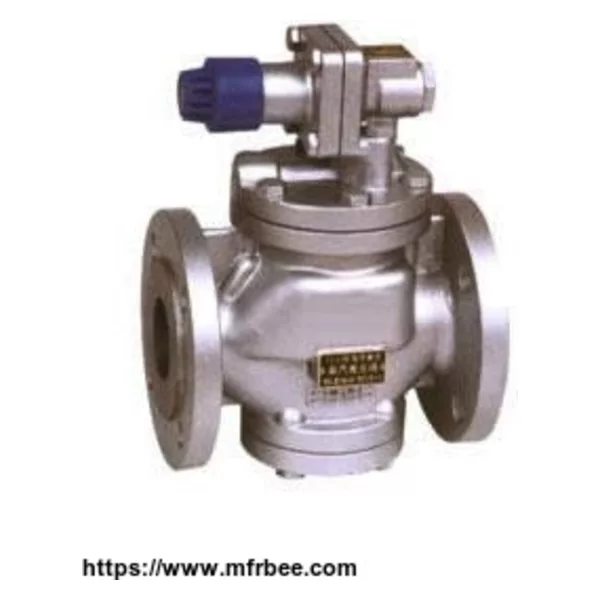

Flanged RP-6 Steam Pressure Reducing Valve (PRV), WCB
Product Quick Detail
- FOB Price
- USD $50.00 / Piece
- Minimum Order
- 10
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 5 Days
Specifications
China Flanged SteamPressure Reducing ValvePerformance:
Nominal Pressure: 1.0, 1.6 MPa.
Casing Body Test Pressure: 1.5, 2.4 MPa.
Sealing test pressure: 1.0, 1.6 MPa.
Max. Inlet Pressure: 1.0, 1.6 MPa.
Outlet Presure Range: 0.04-0.60, 04-1.0 MPa.
Min. Pressure Difference: 0.05, 0.07 MPa.
Leakage Quantity: GB12245-1989.
Parts & Material:
Body, bonnet, bottom cap: WCB.
Seat, Plug: 410 S.S.
Cylinder sleeve, Piston: Al-Fe bronze
Diaphragm: PH15-7Mo.
Piston Ring: PPL.
Pilot Seat, pilot Plug: 410 S.S.
Spring: ASTM 6150.
Pilot Main Spring: ASTM 6150.
Adjust Spring: UNS G92600.
Flow Coefficient (Cv):
DN: 15, 20, 25, 32, 40, 50, 65, 80.
Cv: 1, 2.5, 4, 6.5, 9, 16, 25, 36.
Nominal Pressure: 1.0, 1.6 MPa.
Casing Body Test Pressure: 1.5, 2.4 MPa.
Sealing test pressure: 1.0, 1.6 MPa.
Max. Inlet Pressure: 1.0, 1.6 MPa.
Outlet Presure Range: 0.04-0.60, 04-1.0 MPa.
Min. Pressure Difference: 0.05, 0.07 MPa.
Leakage Quantity: GB12245-1989.
Parts & Material:
Body, bonnet, bottom cap: WCB.
Seat, Plug: 410 S.S.
Cylinder sleeve, Piston: Al-Fe bronze
Diaphragm: PH15-7Mo.
Piston Ring: PPL.
Pilot Seat, pilot Plug: 410 S.S.
Spring: ASTM 6150.
Pilot Main Spring: ASTM 6150.
Adjust Spring: UNS G92600.
Flow Coefficient (Cv):
DN: 15, 20, 25, 32, 40, 50, 65, 80.
Cv: 1, 2.5, 4, 6.5, 9, 16, 25, 36.
