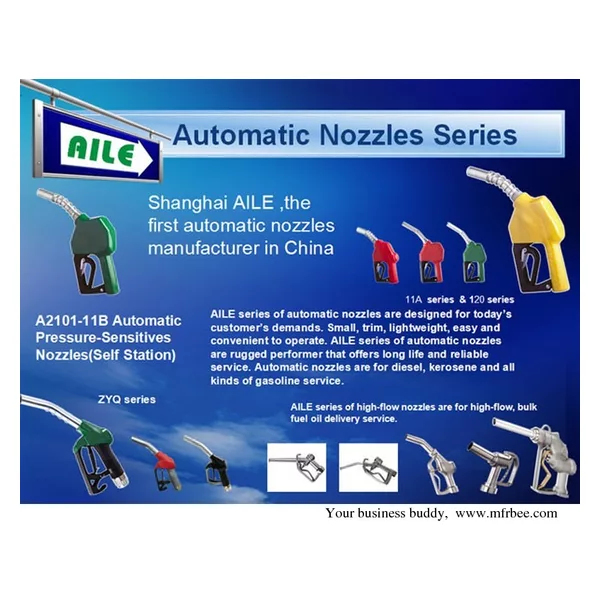

AILE ZYQ-13A Automatic Nozzle

Place Of Origin: China (Mainland)

Packaging: 12 or 15 pcs per carton

Delivery: 15 Days

Specifications

ZYQ-13A Automatic Nozzle is small, trim, lightweight, easy and convenient to operate. Offers long life and reliable service.

ZYQ-13A Automatic Nozzle

1) Small, trim, lightweight, easy and convenient to operate

2) Offers long life and reliable service

3) Materials:

a) Body: aluminum

b) Seals: buna-N, biton

c) Main stem seals: viton cased oil seal

d) Main stem: stainless steel

4) Ordering specifications:

a) ZYQ13A:

i) Inlet size: BSP3/4", BSP1", NPT3/4", NPT1"

ii) Outlet diameter: 15/16"

iii) Flow rate: 0-70L/m (15/16")

b) ZYQ13AP:

i) Inlet size: BSP3/4", BSP1", NPT3/4", NPT1"

ii) Outlet diameter: 13/16"

iii) Flow rate: 0-45L/m (13/16")

5) Working pressure: 0.18MPa

6) Compound main valve and bleed poppet

7) Tight structure, attractive appearance

8) Minimum pressure loss and offers a maximum flow rate

9) Accurate flow control: allows customers to top off their tank to the

exact amount that they want, and it's easy to stop gasoline flow

precisely

10) Easily replaced 360o rotation swivel prevents the hose

from curling up

11) Hold-open rack is available for full-service applications

12) One-hand control means easy setting to flow rate for customer's

convenience

13) Spout with gear: making it to be holding on the spout of tank without

hand, improving efficiency

14) Flow-lock: designed to shut-off automatically when the spout is

tripped up, limiting spillage, avoiding accident

15) Hand insulator: protects both nozzle and vehicle, and insulates

users' hands

16) Available colors: color chart on inside back cover

17) Selective splash guard

18) 100% factory tested

19) Warnings:

a) Using foreign objects to hold open

b) Automatic nozzles could result in

c) Failure to shut-off and personal injury

20) Weight: 1.25kg/pc
