Operating Principle:

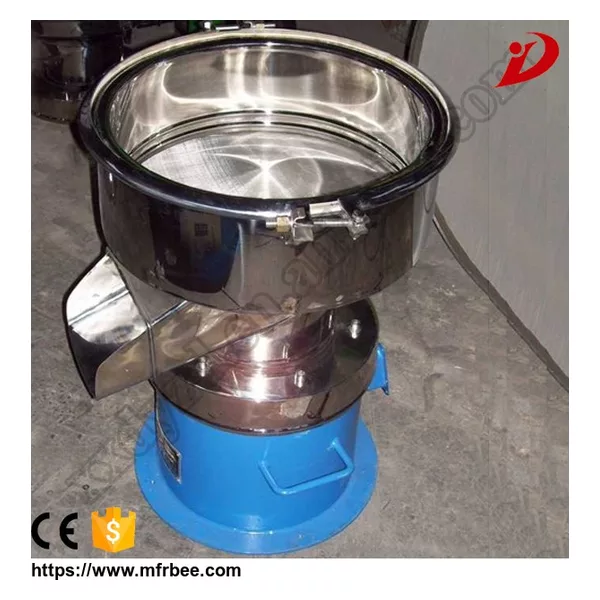

Vibrating motor of 450 filter sieve filter with variable eccentric weights mounted on each sides of motor shaft. The vertical and horizontal movement of the machine, speed and track of material on
the screen all can be controlled by adjusting the angel of the two eccentric weights.
Main Parts
Upper ledge,Small clamps,Single network rack double straps,Aprons,Bottom frame,Vibration body,Vertical vibration motor, Spring,Bottom tube.
Applicable Industry and its Application:
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
6) Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
7)The product is applicable to any powder, granule, liquid screening and filtering industry. XZS series rotary vibration screen is widely used in chemical industry, medicine powder, paint, pigments,
cosmetics, oil, resin, ceramic slurry, clay slurry, lime, refractory powder at the end, magnetic powder, polishing powder, fruit juice, beverage, sugar, salt, MSG, milk powder, starch, flour, rice
flour, carbon powder, graphite powder, manganese powder, lithium carbonate, help solvents, fire extinguishing agents, as well as the environmental protection industry wastewater, wastewater treatment
process of screening, filtering.
Advantages:
1.
450 filter sieve has dual purpose, which is designed for separation and filtering.Well block facility. No splash and
leak.
2.Extremely attractive design and completely portable (optional casters available). Truly a multi purpose unit and can quick separating liquid.
3.Configured for classification, sieving, cleaning and washing,Up to 5 times outlet compared than common sieving machine.
4.To speed up the reunion and separation of content, thus increasing dry weight, reduce the number of large particles.
5.Screening ability and scope, there are advantages other screening machines cannot reach.
Technical parameters
Motor Sieve Size Diameter Effective Screen Surface
Power
Single vertical motor 0.038-3mm 380mm 1460r/min
0.18kw
