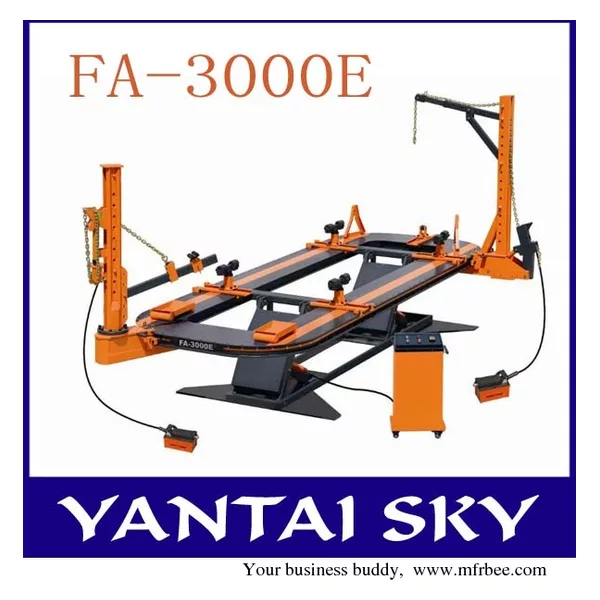

auto body repair equipment fa-3000e
Product Quick Detail
- Packaging
- export standard packing
- Delivery
- 3 - 7 days against payment
Specifications
FA-3000E
Rack Length.................................5500mm
Rack Width...................................2000mm
Rack Height...................................1020mm
Tower Power...............................95KN
Range of Tower...........................360?BR>Max.Lifting Weight.......................3.5T
Net Weight...................................2.7T
Features:
1. The frame machine is made of high quality manganese plates, enjoys merits of high strength & rigidty,and long-life.
2. Two hydraulic cylinders work vertically, lifting the platform stable and reliably, any height between 300-1020mm adjustable. Double safety systems applied to make Frame Machine rather safe.
3. New type square towers can be moved smoothly alongside the platform and turn 360? make straightening from different positions possible,
thus forcing endurance is more reasonable, enable workers to operate easier and safer.
4. Improved Euro-type towers, equipped with hydyaulic rod jack, flexible, time and labor saving.
5. Universal clamps are forged and heat-treated,enjoy good features of high strength and long life, can endure almost all deformation correction jobs.
6. The clamps are designed to have wide jaw as wide as 118mm, can fix both auto-skirt and frame.
7. Hydraulic system is collaborated designed and made, having strong power, long life and easy maintenance features.
Rack Length.................................5500mm
Rack Width...................................2000mm
Rack Height...................................1020mm
Tower Power...............................95KN
Range of Tower...........................360?BR>Max.Lifting Weight.......................3.5T
Net Weight...................................2.7T
Features:
1. The frame machine is made of high quality manganese plates, enjoys merits of high strength & rigidty,and long-life.
2. Two hydraulic cylinders work vertically, lifting the platform stable and reliably, any height between 300-1020mm adjustable. Double safety systems applied to make Frame Machine rather safe.
3. New type square towers can be moved smoothly alongside the platform and turn 360? make straightening from different positions possible,
thus forcing endurance is more reasonable, enable workers to operate easier and safer.
4. Improved Euro-type towers, equipped with hydyaulic rod jack, flexible, time and labor saving.
5. Universal clamps are forged and heat-treated,enjoy good features of high strength and long life, can endure almost all deformation correction jobs.
6. The clamps are designed to have wide jaw as wide as 118mm, can fix both auto-skirt and frame.
7. Hydraulic system is collaborated designed and made, having strong power, long life and easy maintenance features.
