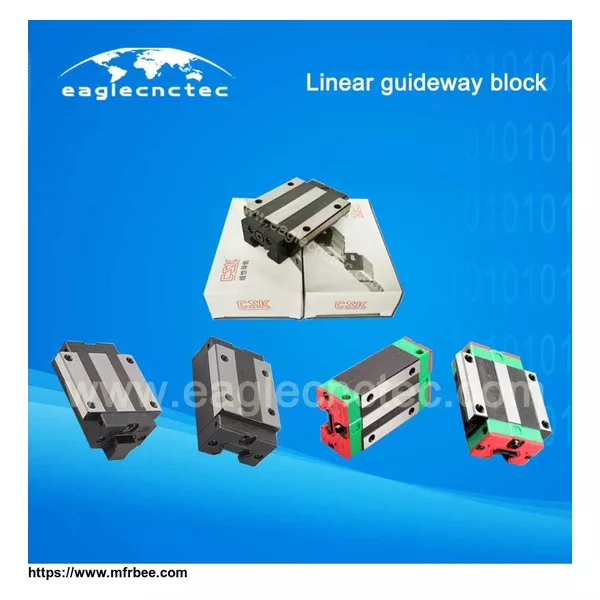

PMI HIWIN Linear Bearings Block- Hiwin Linear Rail Carriage

HIWIN Block

The series HG is the correct one suitable for cnc wood router machines. HG means heavy load ball type.

Features of HG series

1) Self-aligning capacity

2) By design, the circle-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation.

3) Interchangeability

4) High rigidity in all four directions

Available model ofHIWIN blockHG series are:

HGH15CA HGH20CA HGH25CA HGH30CA HGH35CA HGH45CA HGH55CA HGH65CA
HGL15CA HGL25CA HGL30CA HGL35CA HGL45CA HGL55CA
HGL25HA HGL30HA HGL35HA HGL45HA HGL55HA
HGW15CA HGW20CA HGW25CA HGW30CA HGW35CA HGW45CA HGW55CA HGW65CA
HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW65CC
HGW15CB HGW20CB HGW25CB HGW30CB HGW35CB HGW45CB HGW55CB HGW65CB
HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA
HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC HGW65HC
HGW20HB HGW25HB HGW30HB HGW35HB HGW45HB HGW55HB HGW65HB
HGW20HA HGW25HA HGW30HA HGW35HA HGW45HA HGW55HA HGW65HA
