1325 CNC Router from China CNC Router Manufacturer

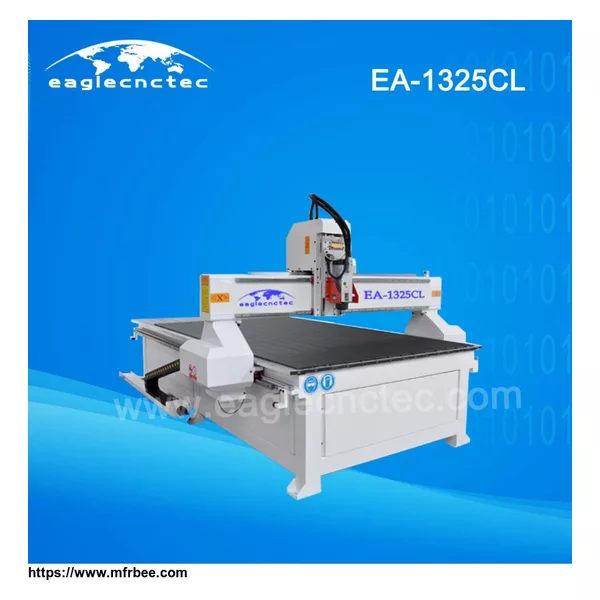

EA-1325CL is a basic model of cnc router, working size 1300x2500mm, clamp table. As a basic model, it can be used in any fields. This model equipped with origin Italy HSD6.0kw spindle, especially suitable for cutting jobs.

Application

Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Features

1) Frame is welded with seamless steel structure; processed by high temperature tempering

treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6

legs with adjustable leveling feet

2) Beam is made of steel. A steel beam is superior to a aluminum in its ability to suppress

and absorb the forces created during cutting. It is internally ribbed in order to stiffen the

assembly; this design is minimizing the vibration while increasing accuracy and repeatability

3) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly

long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany

rolling antibacklash ball screw

4) Each axis of motion is supported on high precision linear guide ways. Hiwin linear guides

allow for higher feed speeds and a better quality of cut

5) The Y-axis uses a dual drive, one for each side of the gantry

6) Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc

7) Has the function of re-carving after break point and power failure

8) All the linear guides are centrally lubricated from a central system
