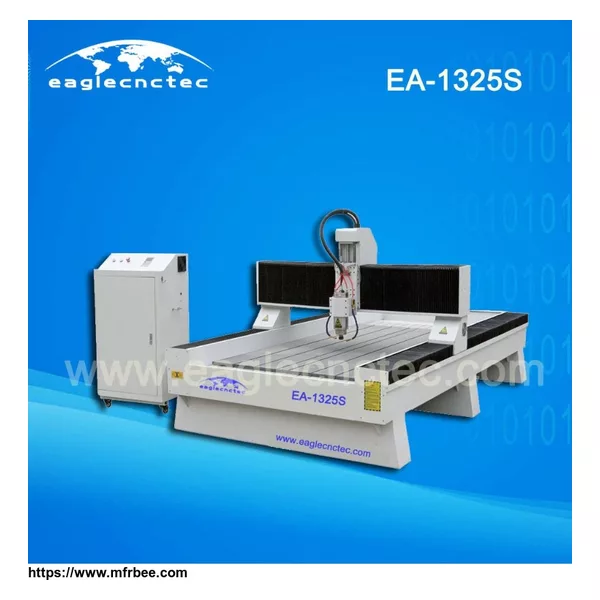

Granite Engraving Machine CNC Stone Router

Features of stone CNC router

1) Tool cooling system water recycle design.

2) Heavy duty lathe body is welded with thick wall seamless steel tube; processed via vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6 legs with adjustable leveling feet.

3)Beam is made of steel. It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability.

4)The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw.

5)Each axis of motion is supported on high precision linear guide ways that allow for higher feed speeds and a better quality of cut.

6) The Y-axis uses a dual drive, one for each side of the gantry.

7) Has the function of re-carving after break point and power failure.

8) All the linear guides are centrally lubricated from a central system.

9) Anti – dust and anti – water design on X & Y axis is protection for transmission part.

XY Working Size | 1300x2500mm

Z stroke | 300mm

Feeding Height | 300mm

Tool Cooling System | With

Anti-dust Design | With, on X and Y

Spindle | water cooled 4.5kw, adjustable RPM 0-18,000

Drive Motor | Big torque stepper

Controller | RichAuto A11

Driver | YAKO2811MA

Software | ArtCAM, UcanCAM, Type 3

Command | G code

Max. Traveling Speed | 35,000mm/min

Working Holding | By Clamp

XY Transmission | Helical rack and pinion, fast feeding

Z Transmission | Rolling balls crew, high precision

Router Bit Dia Range | 3.175-16mm

Power Supply for Machine | AC380V/50Hz, 3Ph 4 Wires or customized

Max. Power Consumption | 9KW (spindle include)

Net Weight | 1800KGS

Packing | Fully wrapped with plastic film and then packed into strong plywood case
