Chin Chin Production Line

The machine is applied to produce fried cakes, which parting off dough to small parts.

Product Introduction:

This machine is an imitation of hand craft production and the design is simple. Firstly, shaping the dough simply, then put it on the roll and roll into the mold knife, at last the mold knife could cut the dough into certain shapes. Cakes produced in this way are the same in length, width, thickness, imitation of manual operation but better than manual products. What’s more, the dough will not stick to the knife.

Description:

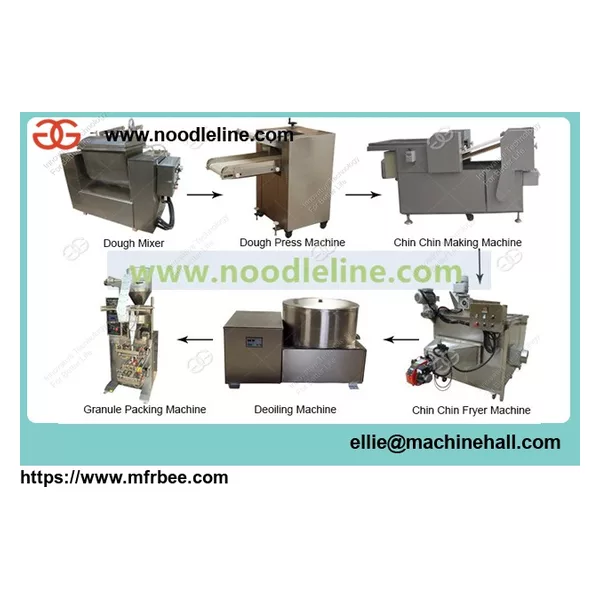

The production line consists of dough mixer, dough press machine, chin chin making machine, chin chin fryer machine, automatic chin chin packing machine.

Features:

1.The length and thickness of the cake is adjustable freely within the range of the machine to meet the requirements.2.The chin chin frying machine can keep the frying oil color good, effectively improving fired food quality. Temperature can be controlled automatically for different food.3. The automatic chin chin packing machine can automatically complete a series of actions, such as bag making, the measuring, filling, inflating, counting, sealing, code printing, material giving, stopping in certain quantity, fixed-bag cutting and same cutting.

Data:

Machine Capacity Power Size

Dough Mixer 50kg/time 3KW 1180*550*920mm

Dough Press Machine 700kg/h 2.2KW 1130*610*1060mm

Chin Chin Cutter Machine 50-150 kg/h 1.5KW 1700*600*1050mm

Chin Chin Fryer Machine 150-200kg/h 42kw 1400*1400*1100mm

Chinchin Packing Machine 40-110 bags/min 1.8kw 820*980*1680mm
