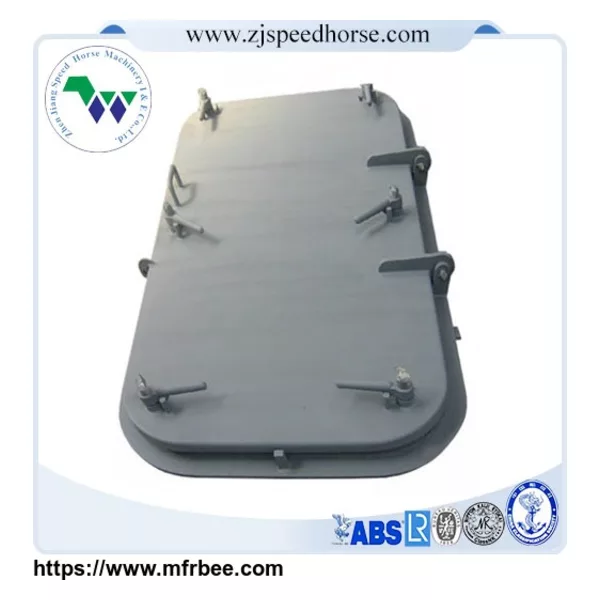

C-Series Marine Steel Weathertight Single Leaf Door

Price
250
Place Of Origin
china
Minimum Order
1
Packaging
1
Delivery
15 Days

Specification:

1. C series marine weather tight single-leaf steel door.
2. Produced as drawing.
3. CCS, BV, ABS, BL, KR, LR, DNV, NK, RINA, RS.
4. Marine use steel.


Used for the doorway of superstructure above freeboard deck or deck house to meet ISO 6042-1980. It can be fitted with special robber lock device.

CF type is square corner, CY type is round corner.

Test Requirements:
Class C- the door must pass the hose test with nozzle diameter 12.5mm, the water pressure 0.25Mpa.

Door Class & Application Position:

Class C- Front bulkhead of the third superstructure above freeboard deck (in the range 0.2-0.6L forward after perpendicular), and the after bulkhead & side wall of the second superstructure.
  • Country: China (Mainland)
  • Business Type: Manufacturer and exporter
  • Market:Asia,Europe,Middle East,Oceania,Americas
  • Founded Year:2009
  • Address:
  • Contact:Sabrina Hsu
more images of C-Series Marine Steel Weathertight Single Leaf Door
  • sales@CN,2017-02-27 10:48:05
    Standard: GB/T3477-1996
    Brand name: Speed Horse
    Material: Steel
    Panting Color: Customerized
    Part: Hinge
    Opening direction: Left or right outwards
