Wire Mesh Reinforcement

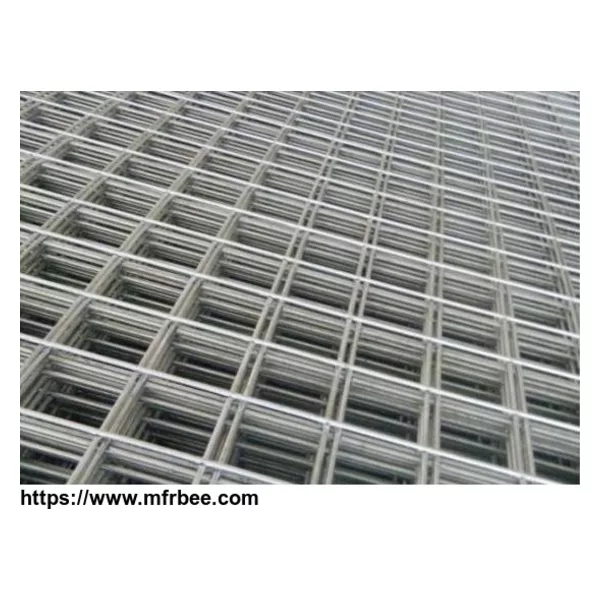

Wire Mesh Reinforcement also named welded steel bar panels, reinforcement mesh.
Our steel reinforcing mesh suitable for use in a variety of applications including:
Concrete footpaths
Industrial and commercial ground slabs
Precast Panel construction
Residential slabs and footings
Standard reinforcing mesh sizes are 6.0m x 2.4m for the SL and RL range of products.
The trench mesh products all come 6.0m longs with a variety of standard widths from 200mm to 400mm
The wire used in our reinforcing mesh has a ribbed profile. This ribbed profile creates improves bonding to concrete, which when compared to smooth wire profiles, minimizes any concrete cracking that may occur as a result of concrete shrinkage.
Number | Spacing | Specification | Cross-sectional area | Weight | |||
longitudinal | cross | longitudinal | cross | longitudinal | cross | ||
A12 | 200 | 200 | 12 | 12 | 566 | 566 | 8.88 |
A11 | 200 | 200 | 11 | 11 | 475 | 475 | 7.46 |
A10 | 200 | 200 | 10 | 10 | 393 | 393 | 6.16 |
A9 | 200 | 200 | 9 | 9 | 318 | 318 | 4.99 |
A8 | 200 | 200 | 8 | 8 | 252 | 252 | 3.95 |
A7 | 200 | 200 | 7 | 7 | 193 | 193 | 3.02 |
A6 | 200 | 200 | 6 | 6 | 142 | 142 | 2.22 |
A5 | 200 | 200 | 5 | 5 | 98 | 98 | 1.54 |
B12 | 100 | 200 | 12 | 12 | 1131 | 252 | 10.90 |
B11 | 100 | 200 | 11 | 11 | 950 | 252 | 9.43 |
B10 | 100 | 200 | 10 | 10 | 785 | 252 | 8.14 |
B9 | 100 | 200 | 9 | 9 | 636 | 252 | 6.97 |
B8 | 100 | 200 | 8 | 8 | 503 | 252 | 5.93 |
B7 | 100 | 200 | 7 | 7 | 385 | 193 | 4.93 |
B6 | 100 | 200 | 6 | 6 | 283 | 193 | 3.73 |
B5 | 100 | 200 | 5 | 5 | 196 | 193 | 3.05 |
C12 | 150 | 200 | 12 | 12 | 754 | 566 | 10.36 |
C11 | 150 | 200 | 11 | 11 | 634 | 475 | 8.70 |
C10 | 150 | 200 | 10 | 10 | 523 | 393 | 7.19 |
C9 | 150 | 200 | 9 | 9 | 423 | 318 | 5.82 |
C8 | 150 | 200 | 8 | 8 | 335 | 252 | 4.61 |
C7 | 150 | 200 | 7 | 7 | 257 | 193 | 3.53 |
C6 | 150 | 200 | 6 | 6 | 189 | 142 | 2.60 |
|
|
|
|
|
|
|
|
