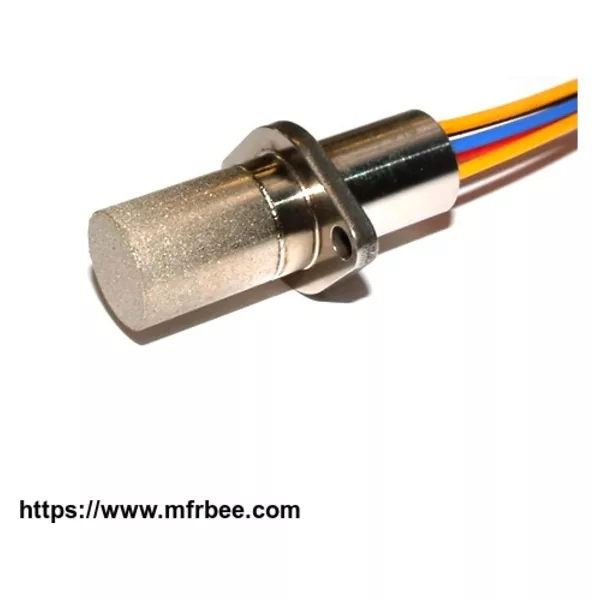

O2S-FR-T5 Oxygen Sensors - Flange Mounted
Product Quick Detail
- Brand Name
- SST
- Place Of Origin
- United Kingdom
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
FEATURES
• Oxygen pressure range 2 mbar - 3bar
• Zirconium dioxide (ZrO2 ) sensing elements
• Non-consumption technology
• Integral heating element
• No need for temperature stabilisation
• No reference gas required
• High accuracy
• Linear output signal
• Operates with external interface boards
SPECIFICATIONS
Heater Voltage
Porous Cap (15mm) 4.35V DC ± 0.1V DC (1.85A)
Stand by 2V DC (0.85A)
Pump resistance @ 700°C < 6kΩ
Permissible gas temperature -100 to 250°C
Gas flow rate 0 to 10 m/s
Repetitive permissible acceleration 5 g
Incidental permissible acceleration 30 g
ELECTRICAL CONNECTION
1: Pump (Red)
2: Common (Black)
3: Heater (Yellow)
4: Sense (Blue)
5: Heater (Yellow)
PERFORMANCE CHARACTERISTIC
• Oxygen pressure range 2 mbar - 3bar
• Zirconium dioxide (ZrO2 ) sensing elements
• Non-consumption technology
• Integral heating element
• No need for temperature stabilisation
• No reference gas required
• High accuracy
• Linear output signal
• Operates with external interface boards
SPECIFICATIONS
Heater Voltage
Porous Cap (15mm) 4.35V DC ± 0.1V DC (1.85A)
Stand by 2V DC (0.85A)
Pump resistance @ 700°C < 6kΩ
Permissible gas temperature -100 to 250°C
Gas flow rate 0 to 10 m/s
Repetitive permissible acceleration 5 g
Incidental permissible acceleration 30 g
ELECTRICAL CONNECTION
1: Pump (Red)
2: Common (Black)
3: Heater (Yellow)
4: Sense (Blue)
5: Heater (Yellow)
PERFORMANCE CHARACTERISTIC
| Characteristics | Min. | Typ. | Max. | Unit |
| Oxygen pressure range | 2 | 3000 | mbar | |
| Accuracy | 5 | mbar | ||
| Internal operating temperature | 700 (4.35V DC ) | °C | ||
| Response time (10-90% step) | 4 | s | ||
| Warm up time (prior to sensor | 100 | s | ||
| Warm up time (from stand by) | 20 | s | ||
| Output stabilisation time | ~180 | s |
