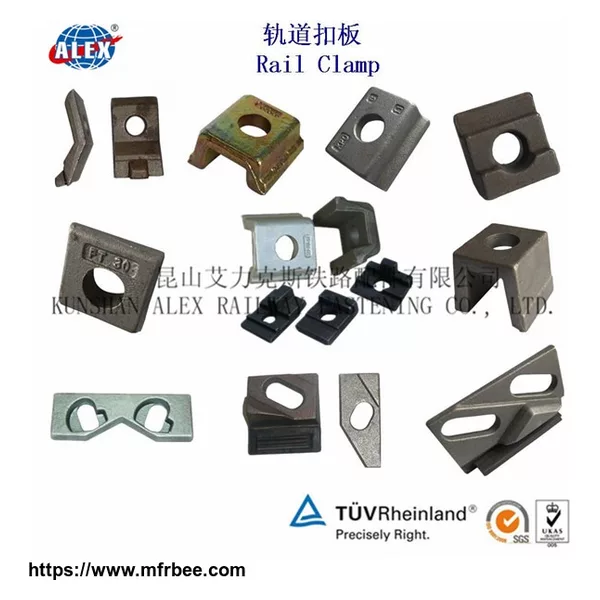

Rail Elastic Clamp
Product Quick Detail
- Place Of Origin
- china
- Minimum Order
- 100
- Packaging
- woven bag+ pallet
- Delivery
- 15 Days
Specifications
| Part name | Type | Material | Finish | Remark |
| KPO clip | KPO3, KPO6, KPO9 | Q235 | Plain oiled | Standard: DIN5906 |
| HS bolt | HS26, HS32 |
Grade4.6: Q235 Grade5.6: 35# Grade8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized |
Diameter: 22mm or 24mm. Length: 55mm, 65mm, 75mm, 90mm Standard: UIC864-2 |
| Hex nut | As ordered |
Grade 5: 35# Grade 8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN985 |
| Double coil spring washer | As ordered | 65Mn | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: UIC864-3 |
| screw spike |
M24×150mm M24 ×160mm M24 ×180mm or other length as ordered |
Grade 4.6: Q235 Grade 5.6: 35# Grade 8.8: 45# |
Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Base plate | UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size | Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel | Plain oiled |
Standard: UIC864-6 |
