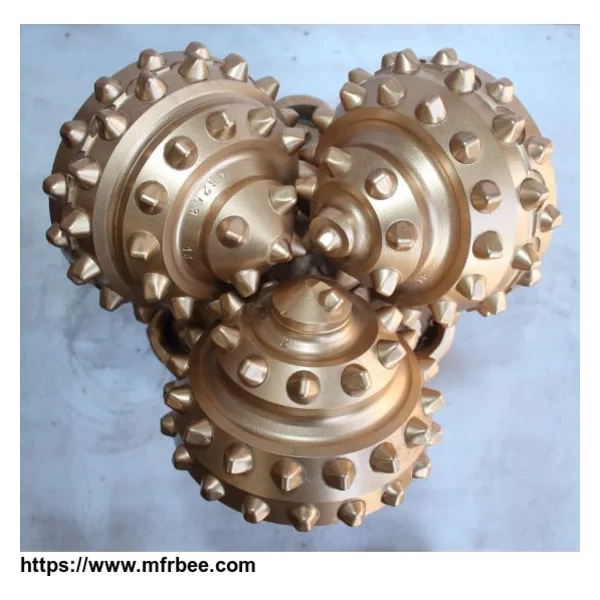

Tricone Rock Bit

Cutting Structure:

The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit. The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit.

Gauge Structure

Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capacity and bearing life.

Bearing Structure

High precision journal bearing with two thrust faces, balls lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction –reducing alloy and then silver –plated. Abrasion resistance and seizure of the bearing are improved. And suitable for high rotary speed.

Seal and Lubrication

The advanced metal seal package consists of two metal seals and two elastic energizers. Compressed energizers ensure good contact being kept on two sealing surface of metal rings by elastic force, and achieves the bearing seal. In the drilling, metal seals are relatively dynamic, and the energizers are static. This will improve the reliability and durability of bearing seal. The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
