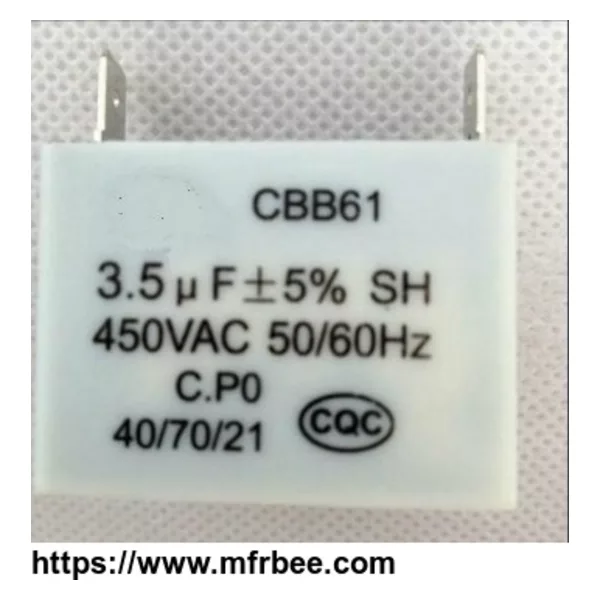

Metallized Polypropylene Film Capacitor/Cbb61
Product Quick Detail
- Minimum Order
- 100
- Place Of Origin
- China
- Packaging
- 12pc/box
- Delivery
- 15 Days
Specifications
CBB61 celling fan motor Capacitor
1.generally use the quadrate anti-flaming plastic shell, epoxy resin packing.
2.This type is of little shape and light weight, little wastage, high insulation resistance, excellent natural repair, good stability, suitable for alternating current circuit.
3.This type capacitor is suitable used in the frequency of 50Hz-60Hz, voltage from 250V -500V single phase A. C. Motors, fan, water pump etc. For starting and running.
4.1-25UF 110-500VAC,50/60HZ
5.UL ,CE ,ISO9001,IEC60252
| reference standards | GB/T 366.7.1(IEC60252-1) |
| Climatic category | 40/70/21 40/85/21 |
| class of operation | Class B(10000h) class C(3000h) |
| class of safety protection | P0 |
| voltage range | 200-500VAC |
| capacitance range | 1-25Uuf |
| capacitance tolerance | +-5% |
| Dissipation factor | 20*10-4 (100HZ,20OC ) |
| Test voltage terminal to terminal UTT | 2Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC -50Hz for 60seconds |
