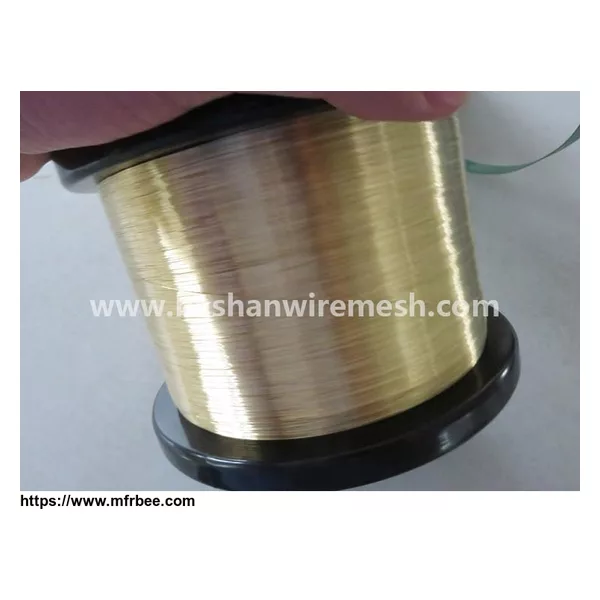

High performance EDM semihard wire
Product Quick Detail
- Minimum Order
- 200
- Kilogram
- 200
- Place Of Origin
- China
- Packaging
- 3kg/5kg/7kg/15kg/20kg each spool
- Delivery
- 15 Days
Specifications
High performance EDM semihard wire
| Product Name | High performance EDM semihard wire |
| composition | Cu60%,Zn40% or Cu63%,Zn37% or Cu65%,Zn35% |
| Wire diameter | 0.30mm, 0.25mm, 0.20mm,0.15mm,0.10mm |
| Weight/Spool | 3kg/5kg/7kg/15kg/20kg |
| Tensile strength: | 1000 N/mm2, 900 N/mm2, 500 N/mm2, 450 N/mm2, N/mm2 |
| tolerance | 0.001 |
| Ultimate Strength (≥ MPa) | 980 |
| Packing | Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance. |
| Used | Agie Charmillies, SODICK, Mitsubishi,Makino EDM machine |
Detailed Images:
High performance EDM semihard wire
Good conductivity, a large number of used in the manufacture of wires, cables, brushes, etc.
Features
High performance EDM semihard wire
1.High dimentional accurac
2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.Stable mechanical properties
5.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
6.Ultra-smooth surface
Packing:
1.A heavy paper dust protection: endometrial advantage.
2.Double protection: seal for PVC precision plastic mold.
3.Three protection: professional shockproof corrugated box
Our Company:
Xinxiang Bashan Aero Material CO., LTDjavascript:nicTemp();
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
