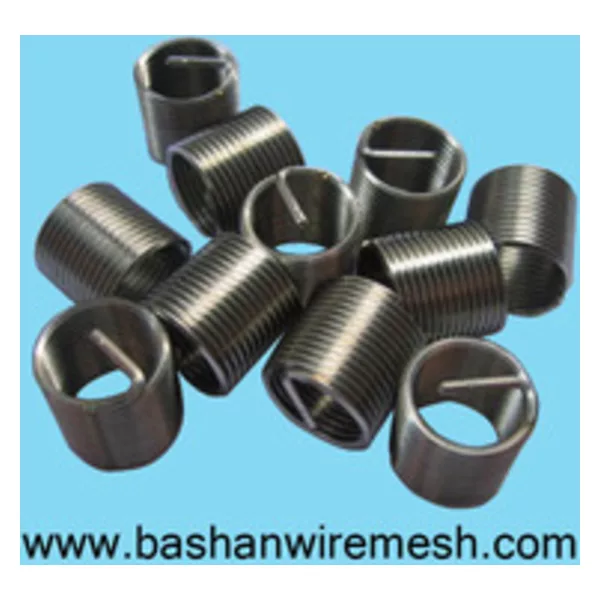

High Durable Wire thread inserts
Product Quick Detail
- Place Of Origin
- henan,China
- Minimum Order
- 300
- Packaging
- shrink wrapped+carton+pallet
- Delivery
- 15 Days
Specifications
he specifications of Durable UNC Wire thread inserts.
|
Size
|
M8*1
|
|
Length
|
1d=8mm,1.5d=12mm,2d=16mm,2.5d=20mm,3d=24mm
|
|
circle
|
3.9k,6.3k,8.7k,11k,13.5k
|
|
type
|
free-running insert
|
|
material
|
stainless steel
|
|
color
|
original/red/black/
|
|
coating
|
plates the titanium/cadmium/galvanization
|
|
standard
|
MERTRIC/UNC/UNF/
|
|
drill diameter
|
8.3
|
Having more than 62 years of experiences in this field, and with background of military technology.
1.Increase the bearing capacity of the threaded connection and fatigue strength
2.Good.abrasion Resistance
3.Corrosion resistance
4.High precision
5.High temperature resistance
Installation Steps of High Durable Wire thread inserts.
1.drilling 2.tapping 3.put thread in wrench 4.installing
5.breaking 6.finished 7.putting bolt in
Our company
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
- Country: China (Mainland)
- Business Type: trading company
- Market:europe
- Founded Year:1955
- Address:No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
- Contact:Jane Yuan
