Steel Cutting Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Steel Cutting Machine for Cutting Various Steel Bars
Steel cutting machine usually consists of protective cover, triangular belt, belt pulley, electric motor, power switch, adjusting screw, bearing, cutting knife and so on. It is efficient to cut
ordinary carbon steel, cold and hot round steel, screw thread steel, flat steel, angle steel and square steel on building construction. The machine has compact structure, high efficiency, small
volume, light weight, high safety, high strength. It also can save power, time and labor. It is convenient to use, maintain and move, can be operated flexibly.
A steel cutting machine has blue saw protective cover and black machine body, and the handle is installed on saw protective cover.

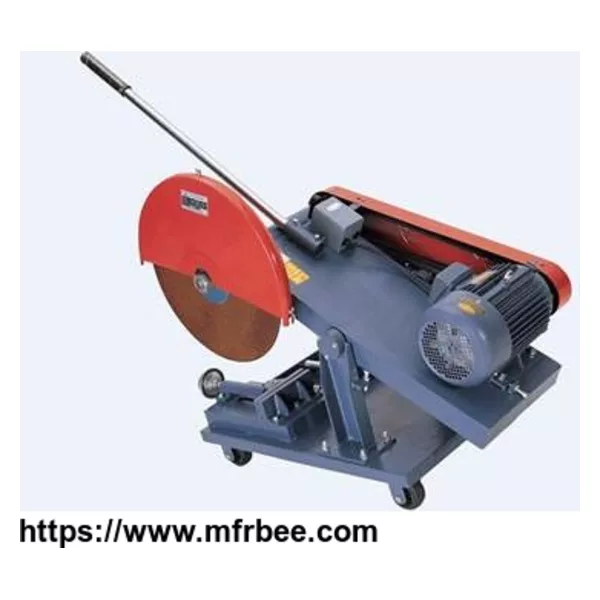

SCM-1: Protective cover of steel cutting machine can ensure the workers' safety.A rebar cutting machine has red saw protective cover and gray machine body, and the handle is away from saw
protective cover.
SCM-2: Rebar cutting machine has high efficiency in cutting steel bar.A steel cutting machine without saw has green handle and black machine body.
SCM-3: Steel cutting machine is safe when worker cut the steel bar.A white CNC steel cutting machine has three long notch.
SCM-4: CNC steel cutting machine is more convenience than common steel cutting machine.
Specification
Class of steel to cut: ordinary carbon steel, cold and hot round steel, screw thread steel, flat steel, angle steel and square steel.
Specification of Steel Cutting Machine
Model Power Voltage Rotate speed of motor Rotate angle of champ Cutting blade size Linear speed Net weight Gross weight Packing size
Unit V kW r/min mm m/s kg kg mm
GQ01 220 2.2 2840 0-45° 400 × 32 × 3 50 60 720 × 415 × 555
GQ02 380 2.2 2500 0-45° 400 × 32 × 3.2 53 65 75
GQ03 380 2.2 2840 0-45° 400 × 32 × 3 65 48 58 720 × 415 × 555
GQ04 380 3.0 2500 0-45° 400 × 32 × 3.2 53 70 80
GQ05 (with clutch) 380 3.0 2800 360 415 1270 × 490 × 820
GQ06 380 3.0 2840 0-45° 400 × 32 × 3 55 65 720 × 430 × 555
GQ07 380 3.0 2880 510 1100 × 500 × 1050
GQ08 380 4.0 2500 0-45° 500 × 32 × 6 140 160
GQ09 (with clutch) 380 4.0 2800 510 535 1470 × 560 × 1010
GQ10 380 4.0 2880 715 1200 × 600 × 1100
GQ11 (with clutch) 380 5.5 2800 890 920 1570 × 700 × 1110
Cutting Ability
Kind of steel GQ05 GQ07 GQ09 GQ11
Round steel bar 6-40 mm 4-42 mm 6-50 mm 6-60 mm
Deformed steel bar 6-32 mm 6-36 mm 6-42 mm 6-50 mm
Flat steel 70 × 15 mm 70 × 15 mm 80 × 18 mm 90 × 28 mm
Square steel 32 × 32 mm 32 × 32 mm 40 × 40 mm 50 × 50 mm
Angle steel bar 50 × 50 mm 50 × 50 mm 63 × 63 mm 73 × 73 mm
Recommendation for piece number of simultaneously cutting off steel bars with diameters smaller than 22mm
Diameter of steel bar (mm) 4-8 10-13 14-18 19-22 More than 22
Cutting off piece number each time 6 5 3 2 1A blue steel bar cutter has protective cover and four wheels.
Steel bar cutter has firm steel housing to protect it.A steel bar cutting machine has gray saw protective cover, black machine body and adjusting screw.
Steel cutting machine can save power, time and labor greatly.
Feature
Steel housing, compact structure, high efficiency, small volume, light weight, high safety, high strength, stable performance.
Power saving, time saving, labor saving.
Good lubricating performance, flexible operation, convenient to use and maintain, convenient to move.
Guide plate adjusts for bevel cut ranging from 0 to 45°.
Separation of the connecting rod from the gear enable the machine to undertake heavy-duty works.
Large gear can improve the driven speed as well as the working life.
Thread type and adjustable stop gauge ensure the accuracy and stability of cutting operations.
High cutting speed with simplified system is 50% faster than normal cutters.
Important parts of the machine undergone hardness treatment.
Hold down chain secures the tool to transport easily.
Adopting thigh and resistance blades is in order to ensure high efficiency with all standards of steel bars without need to change them.
As the cutting beam is designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products also can be guaranteed.
Cutting times of this machining tool are controlled by the time relay.
Stepless adjustment is available for the stroke of knife beam to promote the production on plate shearing.
Protection fence and the electric interlocker ensure the safety of the operator.
Motorized adjusting and manual adjusting for the back gauge.
Application
Steel cutting machine can be used to cut ordinary carbon steel, cold and hot round steel, screw thread steel, flat steel, angle steel and square steel. It is used in mechanical, building,
electricity, light industry, shipping, steel processing plant, etc.
