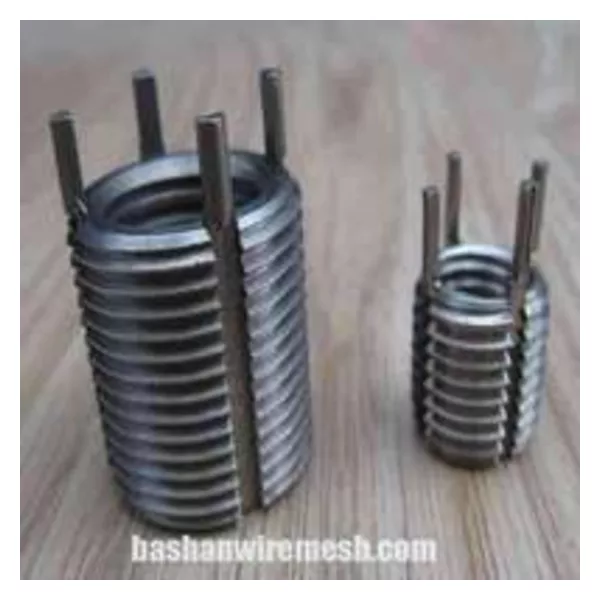

Good quality keensert/key insert thread insert
Product Quick Detail
- Model Number
- M8X1.25
- Place Of Origin
- China (Mainland)
- Minimum Order
- 100
- FOB Price
- USD $1.20 / Piece
- Brand Name
- bashan
- Certification
- ISO9001，TS16949，ISO 14001
- Packaging
- 100pieces/carton
- Delivery
- 5 Days
Specifications
| Material: | Stainless Steel | Coating: | Plates The Titanium/cadmium/galvanizat |
|---|---|---|---|
| Length: | 1d,1.5d.2d,2.5d,3d | Color: | Red,green, Yellow,original |
| Model Number: | M8X1.25 | Circle: | 4.7k,7.4k,10.6k,13.5k,16.4k |
| Used: | Building, Automobile Industry, Furniture, Sanitary, Electronics, Traffic. | Thread: | Coarse, Fine |
| Type: | Key Insert |
Description
M8X1.25 keensert thread insert for metals
| Product Name | M8X1.25 keensert thread insert for metals |
| Material | stainless steel, alloy,N90 |
| Color | red,blue,purple,green,silver |
| Standard | MERTRIC/UNC/UNF/ |
| Coating | Ag,Cr |
| Type | free running insert ,screw lock insert |
| install tool size | Size:M8*1.25 |
| Break tool size | Size:M8*1.25 |
| Unload tool size | Size:M8*1.25 |
| Used | building industry machinery, construcuion,military |
Specification
M8X1.25 keensert thread insert for metals
| Specification d×p | Nominal length L×d | W | Dz | d0 | |||
| d | p | ×d | L1 | min | max | ||
| 8 | 1.25 | 1d | 8.00 | 4.7 | 9.85 | 10.10 | 8.3 |
| 1.5d | 12.00 | 7.4 | |||||
| 2d | 16.00 | 10.6 | |||||
| 2.5d | 20.00 | 13.5 | |||||
| 3d | 24.00 | 16.4 |
| type | Size | nternal thread(6H) | External thread(6g) | Length | Drilling |
| Miniature duty | M2 | M2*0.4 | M4*0.7 | 3 | 3.4 |
| M2.5 | M2.5*0.45 | M4.5*0.75 | 3.8 | 3.9 | |
| M3 | M3*0.5 | M5*0.8 | 4.2 | 4.4 | |
| M4 | M4*0.7 | M6*0.75 | 5.2 | 5.5 | |
| Light duty | M5 | M5*0.8 | M8*1.25 | 8 | 6.9 |
| M6 | M6*1 | M10*1.25 | 10 | 8.8 | |
| M8 | M8*1.25 | M12*1.25 | 12 | 10.8 | |
| M10 | M10*1.5 | M14*1.5 | 14 | 12.8 | |
| M12 | M12*1.75 | M16*1.5 | 16 | 14.8 | |
| Heavy duty | M4 | M4*0.7 | M8*1.25 | 8 | 6.9 |
| M5 | M5*0.8 | M10*1.25 | 10 | 8.8 | |
| M6 | M6*1 | M12*1.25 | 12 | 10.8 | |
| M8 | M8*1.25 | M14*1.5 | 14 | 12.8 | |
| M10 | M10*1.5 | M16*1.5 | 16 | 14.8 | |
| M12 | M12*1.75 | M18 *1.5 | 18 | 16.8 |
Packaging & Delivery
Packaging Details:
inner: plastic bag
outer: paper box or wooden case,depending on the weight
Delivery Detail:
according to the customer's requirement
