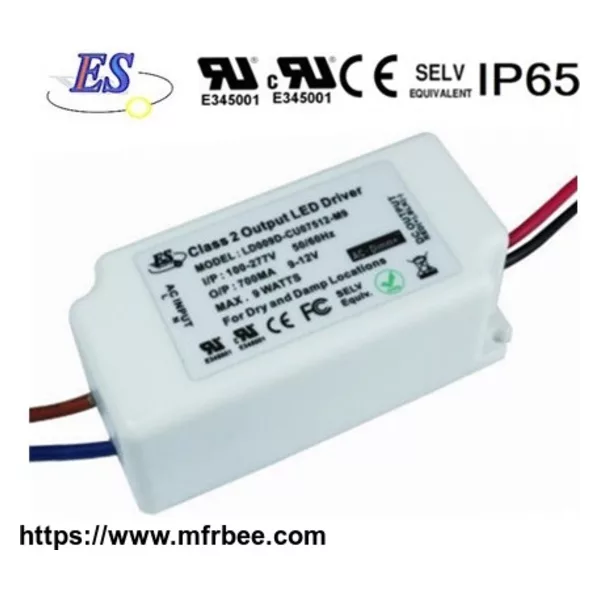

9W AC-DC Constant Current LED Driver with TRIAC Dimming

Product features:

￭: Input range from 112 to 127 VAC

￭: AC phase-cut dimming at 120VAC

￭: Work with leading edge dimmer

￭: Constant Current desgin

￭: Built-in active PFC Function

￭: Compact, lightweight in plastic application

￭: Designed for indoor application

￭: Protections:Over Current/Short Circuit

￭: 3 year warrenty

￭: UL CUL CE approval

Product description:

M9 series is 9W AC-DC constant current single output LED driver power supply with TRIAC dimming,Leading edge dimmable.

It accepts input 120VAC and provides 5 models with different output voltage/current:

LD009D-CU07512-M9:8-12Vdc 750mA 9W LED driver

LD009D-CU03724-M9:16-24Vdc 375mA 9W LED driver

LD009D-CU02536-M9:24-36Vdc 250mA 9W LED driver

LD009D-CU02242-M9:36-42Vdc 220mA 9W LED driver

LD009D-CU01948-M9:42-48Vdc 190mA 9W LED driver

M9 series exploiting Class 2 power supply design and adopting plastic case,rectangle shape desgin

IP65 ingress protection level allows this series to fit indoor LED light applications.
