68W Constant Current Switching Power Supply with 1-10V Dimming

Product features:

￭: Universal Input range from 110 to 277VAC

￭: Fully Potted suitable for dry and damp location applications

￭: Built-in active PFC Function.

￭: Constant Current design(C.C mode)

￭: 1-10V dimming control

￭: UL8750 and CE compliant

￭: Wide selection of per-adjusted C/C output(factory setting)

￭: Over current / Short Circuit / Over Temperature Protection

￭: 3 year warrenty

￭: UL CUL FCC CE approval

Product description:

Q38P series is 68W AC-DC constant current mode single output LED driver power supply with 1-10V dimmable.

It accepts full input range from 110 to 277VAC and provides 7 models with different output voltage/current:

LD068H-CU28024-Q38P:15-24Vdc,2800mA 68W LED driver

LD068H-CU23030-Q38P:18-30Vdc,2300mA 68W LED driver

LD068H-CU19036-Q38P:24-36Vdc,1900mA 68W LED driver

LD068H-CU16042-Q38P:36-42Vdc,1600mA 68W LED driver

LD068H-CU14048-Q38P:42-48Vdc,1400mA 68W LED driver

LD068H-CU12554-Q38P:46-54Vdc,1250mA 68W LED driver

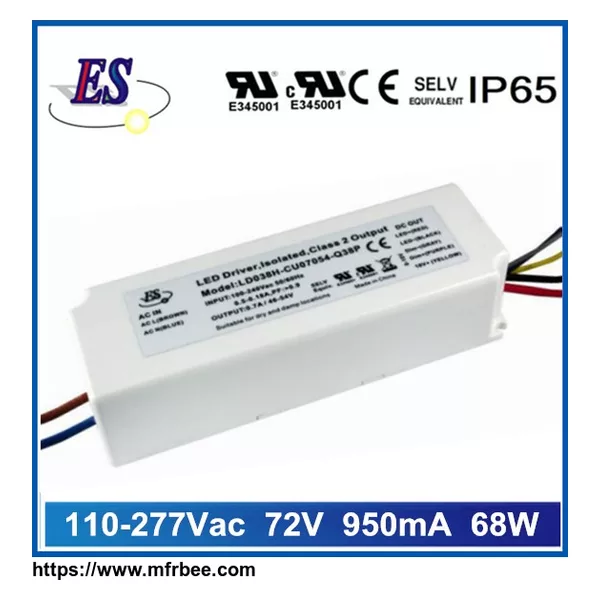

LD068H-CU09572-Q38P:50-72Vdc,950mA 68W LED driver

Q38P series exploiting Class 2 power supply design and adopting plastic case.

IP65 ingress protection level allows this series to fit indoor LED light applications.

Company introduction:

Ever Shining Optotech Co., Ltd is one of the superior LED driver power supply manufacture,

Ever Shining dedicated to developing LED driver switching power supply from 1W to 150W.

Today,our products including constant current/constant voltage mode desgin led driver, Triac/ELV dimmable led driver,0/1-10V dimming led driver power supply,LED emergency backup driver,etc.. Most of them are complied with UL, cUL, CE, and ROHS approval to meet worldwide market demands.
