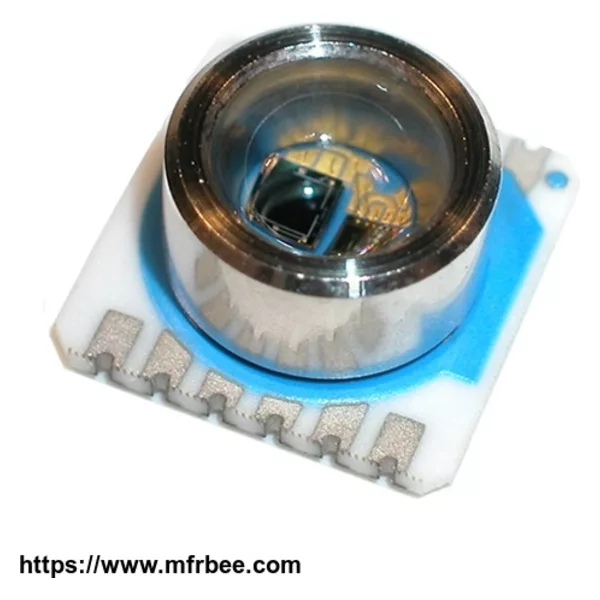

MS5535-30C 30 Bar Pressure Sensor Module

MS5535-30C
30 bar Pressure Sensor Moduld

Specifications
• 0 30 bar absolute pressure range
• 6 coefficients for software compensation stored on-chip
• Piezoresistive silicon micromachined sensor
• Integrated miniature pressure sensor 9 x 9 mm
• 16 Bit ADC
• 3-wire serial interface
• 1 system clock line (32.768 kHz)
• Low voltage and low power consumption

Description:
The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535- 30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.

Features:
• Resolution 3.0 mBar
• Supply voltage 2.2V to 3.6V
• Low supply current < 5uA
• Standy current < 0.1µA
• -40°C to +125°C operation temperature
• 16 Bit ADC resolution pressure measurement and control systems

Field of application:
• Mobile water depth measurement systems
• Diving computers and divers watches

Technical Data
