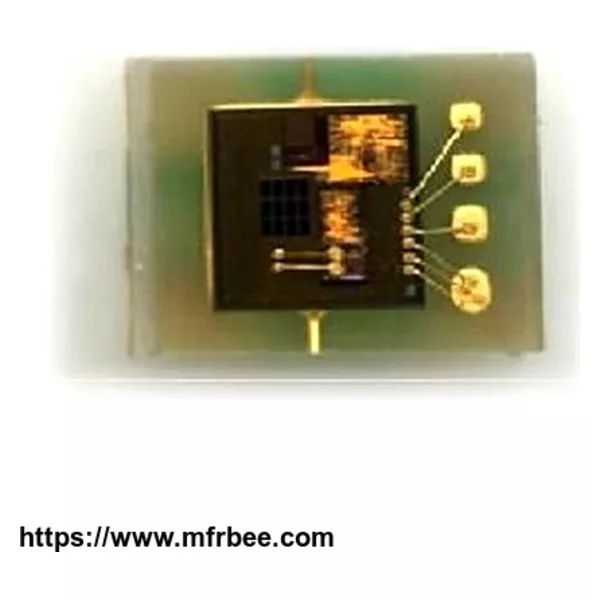

GUVA-C32SM Digital UV Sensor

UV-A Sensor GUVA-C32SM

GENERAL DESCRIPTION
GUVA-C32SM supports integrated functions of ultraviolet light sensors such that can be easily configured and used in user applications.
GUVA-C32SM comprises photodiodes, amplifiers, ADC, digital control logic and I2C interface circuit.GUVA-C32SM receives UVA and outputs digital count according to the intensity. Power consumption can be minimized by proper use of power management mode.

FEATURES
- UVA sensing with 16-bit resolution
- Support UV index measurement (0~16)
- Programmable gain and integration time
- I2C slave interface up to 400KHz
- Power management modes
- Shutdown current : 0.8uA typical
- Supply voltage of 2.2V to 3.6V
- 2.0mm×2.3mm×1.4mm ,4-pin COBpackage

APPLICATIONS
Smartphone, Wearable devices, IoT, watch, weatherstation, bicycle navigation, gaming, accessary

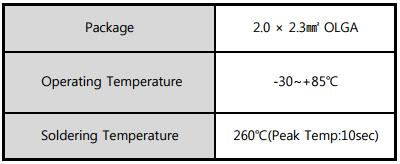

General Characteristics

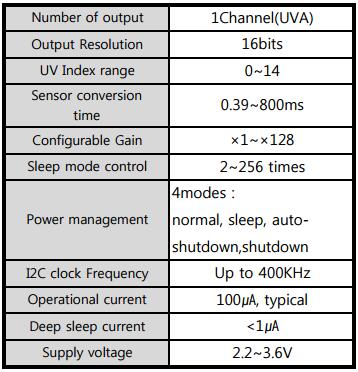

Electrical Characteristics
