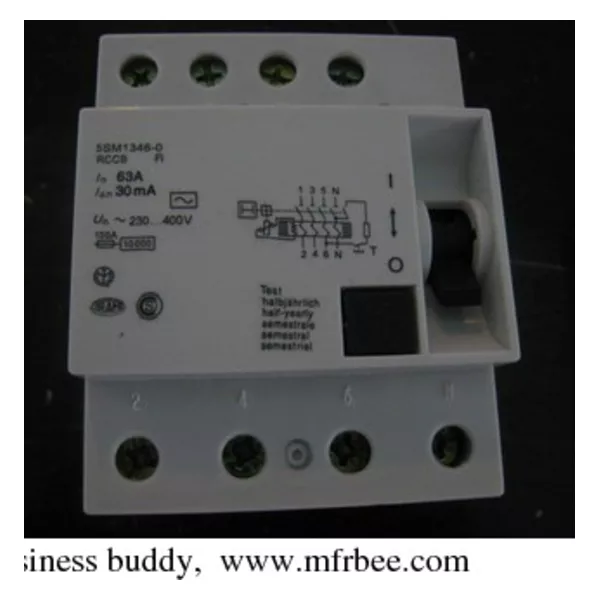

5SM model Siemens ELCB(RCCB)
Product Quick Detail
- Packaging
- 10PCS each box ,and 20 boxes in one carton
- Delivery
- 20 Days
Specifications
1,5SM1/5SM3 siemens rccb
2,Isolation and earth leakage
3,Rated current:16A~100A
5SM1 siemens elcb series earth leakage breakers(elcb) apply to in AC circuit of frequency of 50Hz, rated voltage up to 415V, rated current up to siemens elcb 80A. It is mainly used as an
indirect contact protection for human. It also can be used to prevent against the fire danger caused by earth fault current owing to equipment insulation damage. When the protective measures of
the electric shock are out of work, the RCCB whose rated residual operating current less than 30mA can serve as the supplementary protection for indirect contact, but it can't be used as the
sole direct contact protection.
PRODUCT FEATURES
Series 5SM1 Leakage Breakers are the protector for pure electromagnetic residual current operation.
The operation function is unrelated to circuit voltage, but operation is reliable.
It can be reliably operated on the loss of phase or neutral.
The capacity of resisting electromagnetic interference is strong.
| Type |
Un (V) |
Hz |
Im IΔ m |
Inc IΔ m |
In A |
IΔ n mA |
IΔ no mA |
The maximum of break-time (s) | ||||
| I Δ N | 2IΔ N | 5IΔ N | 0.25A | 500A | ||||||||
|
5SM1 2P |
240 | 50, 60 |
500A (In≥ 50A 10In) (In > 50A) |
6000A |
6, 10, 16, 25, 32, 40, 50, 63, 80 |
30 | 15 | 0.2 | 0.1 | -- | 0.04 | 0.04 |
| 50 | 25 | 0.2 | 0.1 | -- | 0.04 | 0.04 | ||||||
| 70 | 40 | 0.2 | 0.1 | -- | 0.04 | 0.04 | ||||||
| 100 | 50 | 0.2 | 0.1 | 0.04 | -- | 0.04 | ||||||
| 300 | 150 | 0.2 | 0.1 | 0.04 | 0.04 | 0.04 | ||||||
| 500 | 250 | 0.2 | 0.1 | 0.04 | 0.04 | 0.04 | ||||||
|
5SM1 4P |
415 | 50, 60 |
500A (In≥ 50A 10In) (In > 50A) |
6000A |
6, 10, 16, 25, 32, 40, 50, 63, 80 |
30 | 15 | 0.2 | 0.1 | -- | 0.04 | 0.04 |
| 50 | 25 | 0.2 | 0.1 | -- | 0.04 | 0.04 | ||||||
| 70 | 40 | 0.2 | 0.1 | -- | 0.04 | 0.04 | ||||||
| 100 | 50 | 0.2 | 0.1 | 0.04 | -- | 0.04 | ||||||
| 300 | 150 | 0.2 | 0.1 | 0.04 | 0.04 | 0.04 | ||||||
| 500 | 250 | 0.2 | 0.1 | 0.04 | 0.04 | 0.04 |
