Guvb-s11sd Uv-b Sensor Aluminium Gallium Nitride Based Material

Country: China (Mainland)
Business Type: Distributor/Wholesaler
Market: Europe, America, etc
Founded Year: 2014
Address: sales@isweek.com
Contact: zy

1. Ftatures
- Chip size:0.4mm,SMD 3528 PKG
- Aluminium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current

2. Application
UV Index Monitoring

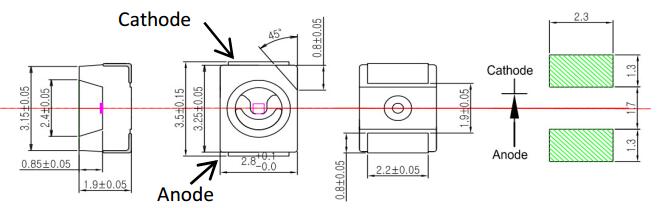

3. Outline Diagrams and Dimensions

4. Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 3V
Forward Current: 1mA
Optical Source Power Range: 0.1µ~100m W/㎠
Soldering Temperature: 260℃

5. Characteristics (at 25℃)
Dark Current: 1nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.11A/W
Spectral Detection Range: 240~320nm
Active area: 0.076mm2
