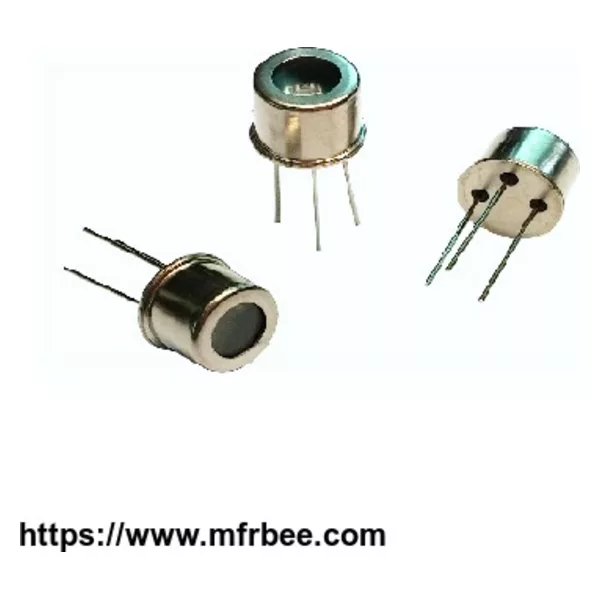

GUVB-T21GH UV Sensor Module
Product Quick Detail
- Minimum Order
- 1
- Brand Name
- Genicom
- Place Of Origin
- South Korea
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1. Features
- Chip size 0.4mm,TO 5 PKG
- Single Supply Voltage Operation
- Voltage Output
- High Sensitivity and Good Solar Blindness
- Small and Compact Size
2. Applications
UV-B Lamp Monitoring
UV Index monitoring
3. Outline Diagrams and Dimensions
4. Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃
5. Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50㎂Responsivity: 1.3㎷/㎻
Spectral Detection Range: 220~320nm
Output Voltage(1 ㎽/㎠): 0.93V
Detection Power Range: 0~5.38㎽/㎠
Rising Time: 3㎳
