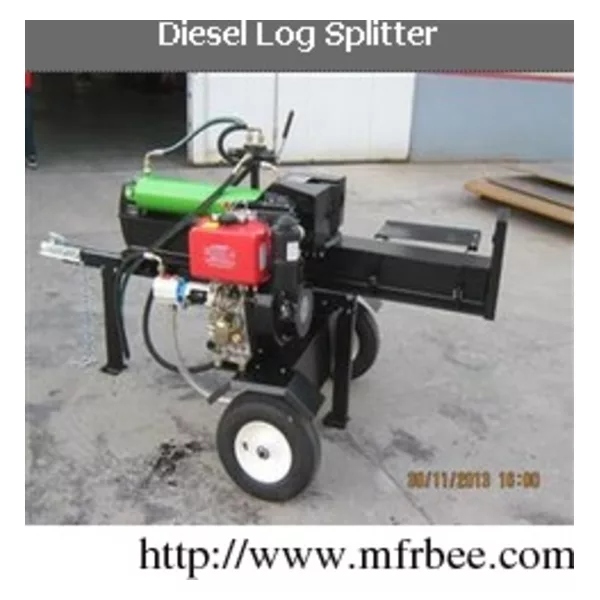

Diesel Log Splitter

Packaging
N/A
Delivery
15 Days
TECHNICAL SPECIFICATION
Model LS20T/610H/V-BSD-J LS26T/610H/V-BSD-J LS30T/610H/V-BSD-J
Description Diesel engine driven, horizontal or vertical
Motive power 5.5HP 5.5HP 9.5HP
Max. split force 20tons 26tons 30tons
Max split size Φ500mm X 610mm(L)
Hydraulic oil 27L
Oil cylinder diameter 4inch 4.5inch 5inch
Travel time 22seconds
Pump 11GPM 11GPM 16GPM
Starting System Recoil
Packing dimensions 2250L*580W*540H mm
