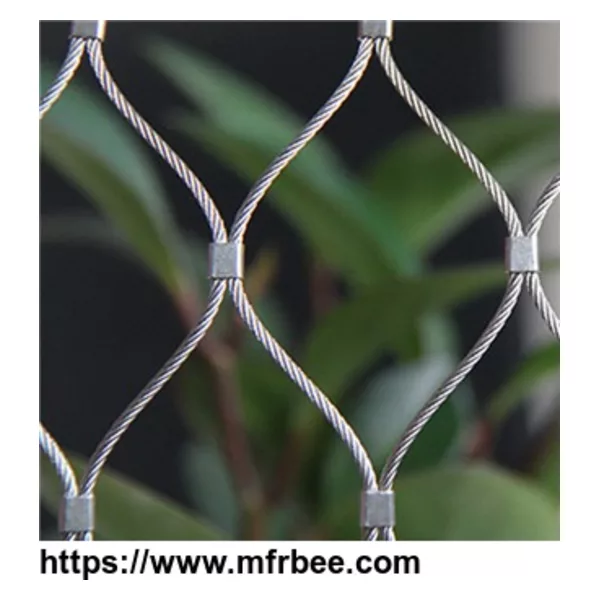

Stainless Steel Ferrule Cable Nets
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Product Description
Stainless steel rope mesh is widely used in the lion mesh, lion enclosure fence mesh,lion enclosure,lion fence,lion enclosures,lion enclosure net,lion fence net,lion fence mesh,lion enclosure
mesh,lion cage mesh,lion cage net,lion fence netting.
The flexible stainless steel cable net is widely used in geographical environments, aquaculture, wild animal fencing, engineer anti-explosion,throw screen,handrail screen,etc
There are two types: knotless and knotted
The flexible stainless steel rope net is produced with high quality stainless steel wire cable and stainless steel ferrule(STAINLESS STEEL FERRULE ROPE MESH), the stainless steel grade includes
type201, type304, type304L, type316, type316L.
The structures of the stainless steel wire cable have two kinds: 7 x 7 and 7 x 19.
The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64",
the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
Mesh type: stainless steel ferrule rope mesh or stainless steel knotted rope mesh.
| Decorative Wire Mesh ( Stainless Steel Rope Mesh) | ||||||
| Code | Rope Construction | Rope Diameter | Opening Size | Breaking Force | ||
| Inch | mm | Inch | mm | kN | ||
| WSDWM3501 | 7 × 19 | 1/8 | 3.2 | 3" × 3" | 76 × 76 | 7.38 |
| WSDWM3502 | 7 × 19 | 1/8 | 3.2 | 2" × 2" | 51 × 51 | 7.38 |
| WSDWM3503 | 7 × 7 | 3/32 | 2.4 | 2.4" × 2.4" | 60 × 60 | 4.18 |
| WSDWM3504 | 7 × 7 | 3/32 | 2.4 | 2" × 2" | 51 × 51 | 4.18 |
| WSDWM3505 | 7 × 7 | 5/64 | 2 | 1.5" × 1.5" | 38 × 38 | 3.17 |
| WSDWM3506 | 7 × 7 | 1/16 | 1.6 | 1.2" × 1.2" | 30 × 30 | 2.17 |
| WSDWM3507 | 7 × 7 | 1/16 | 1.6 | 1" × 1" | 25 × 25 | 2.17 |
| WSDWM3508 | 7 × 7 | 3/64 | 1.2 | 1" × 1" | 25 × 25 | 1.22 |
| WSDWM3509 | 7 × 7 | 3/64 | 1.2 | 0.8" × 0.8" | 20 × 20 | 1.22 |
| All the parameters above can be customized according to clients' requirements. |
