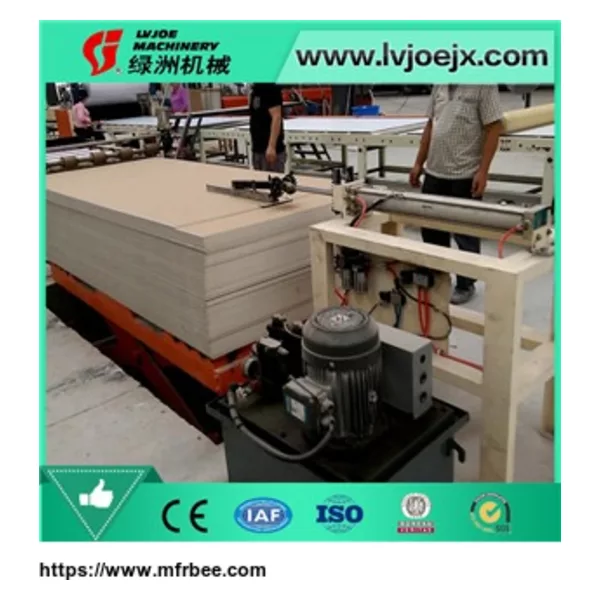

Automatic Gypsum Board Loading and Unloading, Stacking Machine

There are two types of this loading equipment for your choice.

1. suction type 2. push type Name: Suction type board loading machine

Brand: LVJOE

Original: China

This equipment adopts single side suction way to feed kinds of palsterboard into the next production step.

It can achieve the continous production without hurting the board. Eady to operate with reliable performance.

Technical specification:

Board size: 1220*2440mm

Loading mode: continuous unilateral vacuum loading

loading speed: 6pcs/min

Install power: 4KW, 380V Name: Push-type board loading machine

Brand: LVJOE

Original: China

Cylinder push, photoelectric control. Max cylinder range 700mm. Through the push board platform rubber roller rolling transmission to accelerate speed, with the feature of low cost, easy to operate, fully automatic feeding.

Max. Load-bearing: 3000kg

Route: 1500mm

Min. height: 620mm

Max. height: 2000mm

Platform size: 1220*2440mm

Hydraulic pressure station power: 4kw
