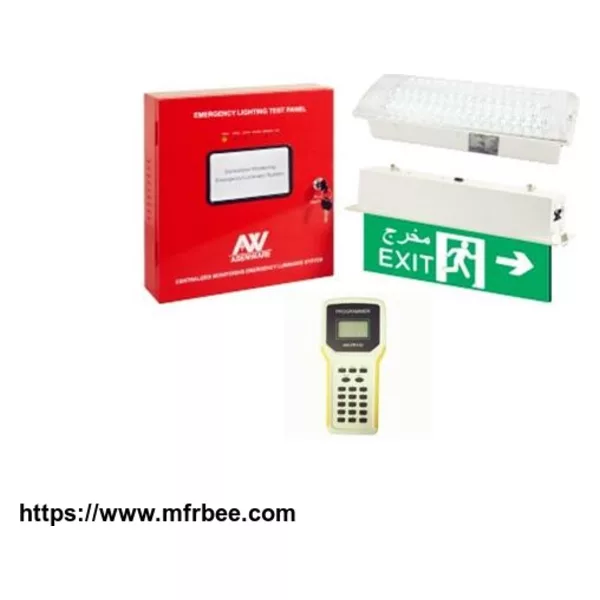

Product name | emergency lighting test panel |
Model | AW-CELP500 |
AC input | 220V AC, 50Hz (+10% or -15%) |
DC output | 3.6V/500mAh NiCd |
Battery parameters |
2*12V/2.3Ah 2*12V/7Ah |
Battery protection voltage | 22.2V |
220V AC input cable | 4mm2 |
Power board fuse | 3A/250V/5*20(mm) |
EMI board fuse | 2A/250V/5*20(mm) |
Operation ambient |
Temperature: -5 to 40°C Humidity: 5 to 95% RH |
Features |
single loop maximum 500 emergency lights per loop up to 16 non-source emergency zone input up to 16 non-source emergency zone input |
|
|
Product name | emergency light monitoring system lights |
Model | AW-CEL101 |
Ac input | 220V AC, 50Hz (+10% or -15%) |
Battery parameters | 4.8V/500mAh |
Battery protection voltage | 3.8V-4.1V |
220V AC input cable | 0.5mm2 |
Switching voltage under emergency mode |
140-180V AC |
Switching time under emergency mode |
<2s |
Light output Lumen | >50lm |
Operation ambient temperature | -5 to 40°C |
Humidity | 5 to 95% RH |
Features |
3-hours battery discharge time 48 pieces LED lights |
|
|
Product name | emergency light monitoring system exit sign |
Model | AW-CEL301 |
AC input | 220V AC, 50Hz (+10% or -15%) |
Battery parameter | 4.8V/500mAh |
Battery protection voltage | 3.8-4.1V |
220V AC input cable | 0.5mm2 |
Light output Lumen | >50lm |
Operation ambient temperature | -5 to 40°C |
Humidity | 5 to 95% RH |
Features |
3-hours battery discharge time 6 pieces LED lights double side |
|
|
Product name | emergency light monitoring system programmer |
Model | AW-PR100 |
Usage | program the address to the lights |
