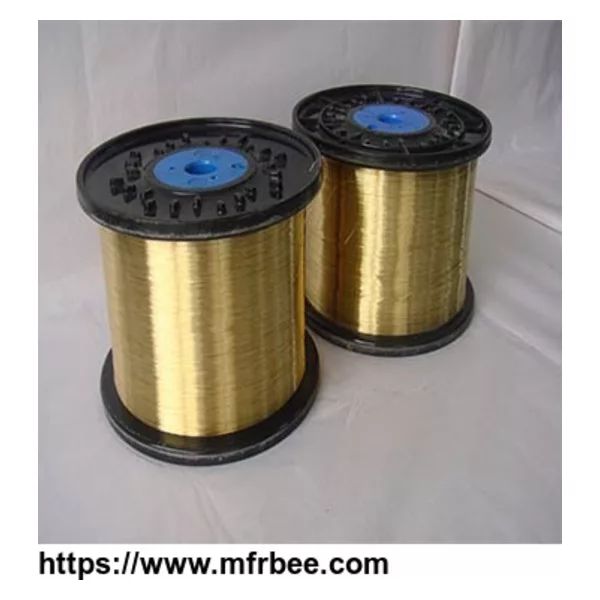

Newest Wire cut EDM brass wire 0.15mm / 980N
Product Quick Detail
- Wire Condition
- Hard, Semi-hard, Soft
- Conductivity
- Above 20% IACS
- Raw Material
- Cuzn35, Cuzn37, H62
- Ultimate Strength (≥ MPa)
- 980
- Place Of Origin
- Henan
- Price
- 8
- MOQ
- 100
- Weight/Spool
- 3~20kg
- Spool Type
- P3, P5, P10, P20, DIN125, DIN160, DIN200
- Wire Diameter
- 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
- Packaging
- inner:plastic bag out:hard paper box or wooden case or according to your requirement
- Delivery
- 7 Days
Specifications
Newest Wire cut EDM brass wire 0.15mm / 980N
Brass EDM wire Φ0.1mm~0.3mm
Raw Material: Cuzn35, Cuzn37, H62
Wire Diameter: 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Wire Condition: Hard, Semi-hard, Soft
Tensile Strength: 1000, 900, 500, 450 N/㎜²
Conductivity: Above 20% IACS
Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
Weight/Spool: 3~20kg
Packing: PE film sealed, moisture proof, quake proof, corrosion resistance.
Applications: Used on wire-cut machine of Agie, Charmilles, Sodick, Mitsubishi, Makino etc.
Newest Wire cut EDM brass wire 0.15mm / 980N Features:
¤ Various of wire core material can match demands
of different wire-cute machine.
¤ Heat treatment technology ensures tensile strength
stability, and prevents damage of wire.
¤ Superior verticality suitable for automatic threading.
¤ High drawing precision, fine ovality, low tolerance.
¤ Outstanding wire cutting speed compared, drop less powder.
Brass EDM wire can have different tensile strength to meet different equipment and applications.
This is achieved by a series of drawing (quenching) and heat treatment (annealing) processes.
Ordinary brass EDM wire tensile strength between 490-900N / mm2.
