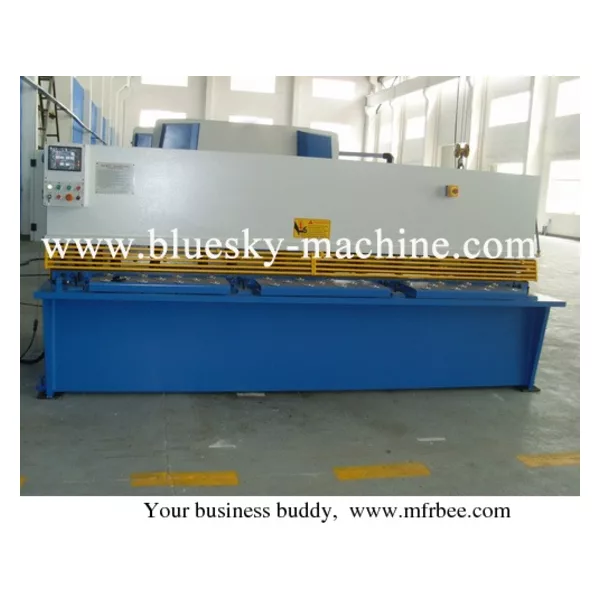

hydraulic swing beam shearing machine
●NC system & encoder to combine closed loop control system.Cut stroke can be controlled to ensure cutting accuracy for long length sheet.Also with automatic detection,etc function.
● cutting stroke with digital display unit.Upper & lower blade gap shown by indicator. Upper knife rest stroke can be stepless adjustment.
●Front feeding adopt ball screw ,rolling guide & pneumatic clamping unit.Feeding accuracy ±0.10mm.
● protection fence for safe operation.
Features of NC hydraulic guillotine shear Advanced integrated hydraulic system with an excellent reliability and easy for maintenance. The shearing angle cannot be changed due to the series cylinder. The rolling guide with 3-point support and improves the shearing quality. The ...
This machine adopts full steel welding structure with enough hardness and rigidity. It also has been heated processed and highly frequently vibrated. Adopting floor boring-milling machine for precision Hydraulic swing structure, blade return unit with nitrogen cylinder and fast ...
STANDARD EQUIPMENT 1. ESTUN E21S NC controller system. 2. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN). 3. Steel mono-block construction. 4. DELTA frequency converter 5. Standard electrics from Schneider, France. 6. Standard oil tube connectors from EMB ...
