Breakaway U-channel Post Anchor

FOB Price: USD $500.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Lap splice breakaway U-channel posts are frequently used as street sign post. Breakaway U-channel sign support is perfect for busy intersections. Once top post is broken by an accident or huge impact, the broken one will be replaced by a quality one just by unscrewing the hardware without digging holes again. U-channel anchor post can be reused for many times. 8 ft top post often accompanies with 3 ft anchor post. Top post and post anchor are sold separately. U-channel breakaway system contains a top post, base anchor post and hardware. Hot-dip galvanized coating or baked-on green or black enamel coating protects the post system from corrosion and improve durability.

Except lap splice post, concrete mounting base is also use in U-channel breakaway system. It can be used as permanent post anchor or movable base. You can find it in U-channel sign post hardware.

NOTE: The height of base anchor post above ground should be no more than 4 inch and the hardware for attaching should be spaced 4 inch.

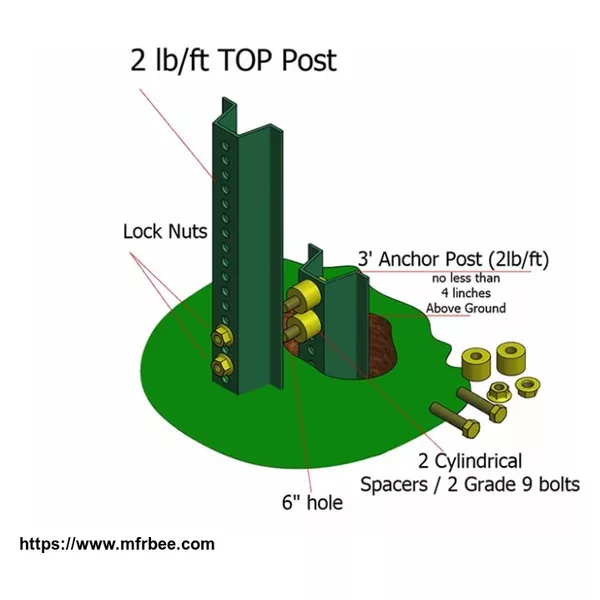

Green breakaway U-channel post construction and hardware.

BUC-01: Breakaway U-channel Post and Hardware.

Product description:

Item: Breakaway U-channel base post.

Material: meets ASTM A1011 Grade 50, ASTM A-653.

Length: 3 ft.

Weight: 2 lb/ft.

Finish: galvanized or green enamel.

Kits: Including a 3 ft base, baked enamel or galvanized upright post and relevant hardware.

Hardware Description:

Hardware includes:

2 bolts and locking nuts.

2 washers.

4 square spacer nuts.

Only for lap splice U-channel breakaway post.

Features & benefits:

Upon impact, the top post breakaway and replace the post without digging a hole.

Base post can be re-used after top post breakaway.

Quick installation save time and money.

Galvanized or baked enamel coating resists rust and weather corrosion.

Economical cost & durable.

Country: China (Mainland)
Business Type: Trading Company
Market:Americas
Founded Year:1987
Address:High-tech Development Zone, Anping County, Hebei Province, China.
Contact:dong feng
