U Channel Sign Post Hardware

FOB Price: USD $500.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

U channel sign post, including 1.12 lb/ft, 2 lb/ft and 3 lb/ft, has a wide applications - from temporary to permanent uses. It features simple installation, very economical cost and durability. A whole set of hardware including mounting screw, street name sign brackets, u channel post base, for u-channel post sign mounting is supplied. If you don't find the hardware you need, just contact us for help.

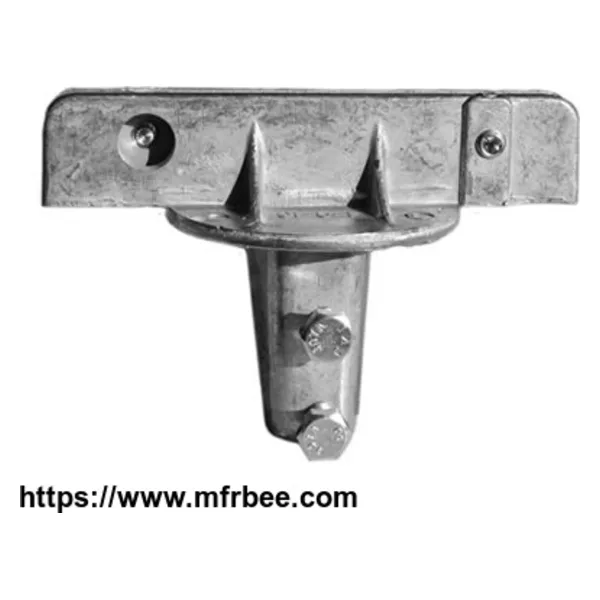

U-channel 90 degree street name sign brackets

90 degree street name bracket for U channel sign post.

UPH-01: 90 degree U-channel post street name bracket.

Description:

Item: 90 degree U-channel post street name bracket.

Blade slot length: 5.5 inch.

Material: aluminum.

Provide 5/16" set screws for mounting sign to bracket.

Include two 5/16 × 5/8'' Hex bolts for sign installing.

Application: install street name signs.

U-channel 180 degree street name sign brackets - Sign sits parallel 180 degrees

Aluminum cast 180 degree U channel post street name bracket.

UPH-02: 180 degree U-channel post street name bracket.

Description:

Item: 180 degree U-channel post street name bracket.

Blade slot length: 5.5 inch.

Material: aluminum.

Provide 5/16" set screws for mounting sign to bracket.

Include two 5/16 × 5/8'' Hex bolts for sign installing.

Application: install street name signs.

Aluminum U-channel Post Mounting Base

Description:

Item: Aluminum post mounting base.

Material: cast aluminum.

Diameter: 15 inch.

Available for 2 lb/ft U-channel post, square posts or 2-3/8 inch round posts.

Including two sets of 2.5 inch long bolts and two nuts.

Application: mounted permanently to a concrete or temporary signs.

U-channel post flat concrete mounting base.

UPH-03: U-channel aluminum mounting base.Movable U-channel sign post and base.

UPH-04: Movable U-channel parking sign.

Mounting screw and nut:

U-channel post mounting screw and nut.

UPH-05: Mounting screw and nut.

Description:

Item: U-channel sign post mounting hardware.

Material: galvanized steel.

Size: 2.5" x 5/16".
