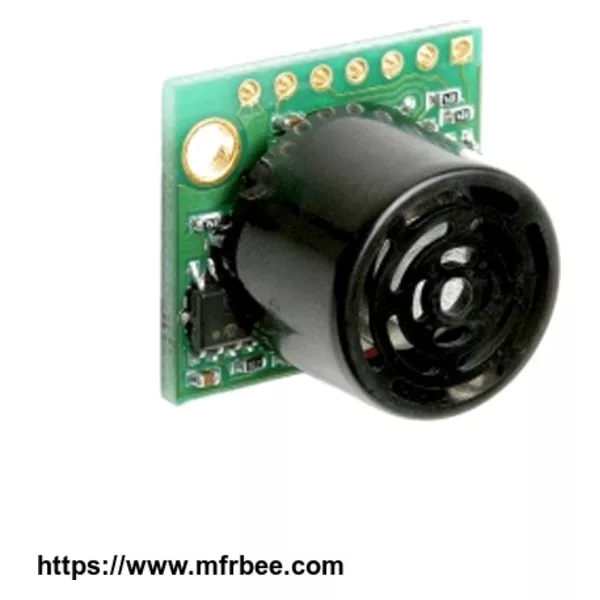

MB1004 LV-ProxSonar-EZ0 High Performance Ultrasonic Rangefinder

Product Description
These ultrasonic proximity sensors detect objects in a calibrated detection zone. The LV-ProxSonar-EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV‑ProxSonar‑EZ detection zone.

The LV-ProxSonar-EZ0 has a detection zone of ~7 feet and will allow for 6+ simultaneous sensors.

Product Specifications
● Resolution of 1 inch
● ~2.5 second target acquire time*
● ~1.5 second target release time*
● Automatic multi-sensor operation
● People sensor
● Maximum reported range of 254 inches (645 cm)
● ~7 foot proximity detection zone (84 inches or 213 cm)
● Run up to 6+ sensors in the same environment
● Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
● 42kHz Ultrasonic sensor measures distance to objects
● RoHS Compliant
● Read from sensor outputs: Serial and Pulse Width
● Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
● Operates from 2.5-5.5V
● Low 2.0mA average current requirement
● Small, light weight module
● Designed for easy integration into your project or product
● Longest detection zone
*Custom times available for a nominal NRE fee
