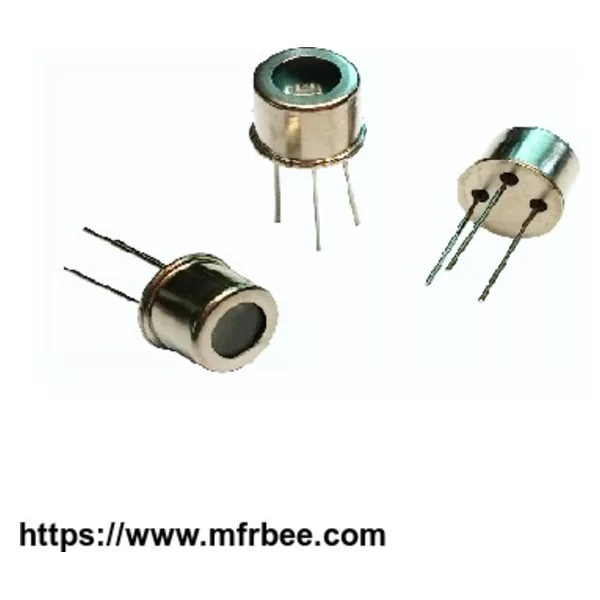

GUVC-T21GH UV Sensor Module

1. Features
Single Supply Voltage Operation
Amplified Voltage Output
High Sensitivity and Good Solar Blindness
Small and Compact Size

2. Applications
Pure UV-C Monitoring
Sterilization Lamp Monitoring

3. Outline Diagrams and Dimensions

4. Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Supply Voltage: 5.5V
Soldering Temperature: 260℃

5. Characteristics (at 25℃)
Supply Voltage: 1.8~5.5V
Supply Current: 50µA
Responsivity: 0.6mV/nW
Spectral Detection Range: 220~280nm
Output Voltage: 0.355V
Offset Voltage: 0.01V
Detection Power Range: 0~14.1mW/cm2
Rising Time: 3ms
