MSP340 Pressure Transducer

DESCRIPTION
The MSP340 pressure transducer from the Microfused™ line of MEAS is great for high volume,commercial and industrial applications. This series is suitable for measurement of liquid or gas pressure, evenfor difficult media such as contaminated water, steam, and mildly corrosive fluids.

The transducer pressure cavity is machined from a solid piece of 17-4 PH stainless steel. The standardversion includes a 1/4 NPT pipe thread allowing a leak-proof, all metal sealed system. There are no O-rings,welds or organics exposed to the pressure media. The durability is excellent.

MEAS’ proprietary Microfused™ technology, derived from demanding aerospace applications, employsmicromachined silicon piezoresistive strain gages fused with high temperature glass to a stainless steeldiaphragm. This approach achieves media compatibility simply and elegantly while providing an exceptionallystable sensor without the p-n junctions of conventional micromachined sensors.

This product is geared to the OEM customer who uses medium to high volumes. The standard version is suitable for many applications, but the dedicated design team at our Transducer Engineering Center stands ready to provide a semi-custom design where the volume and application warrants.

FEATURESAPPLICATIONS
• One-Piece Stainless Steel Construction • Pumps and Compressors
• Ranges up to 10kpsi or 700 Bar • Hydraulic/Pneumatic Systems
• mV or Amplified Outputs • After Market Automotive
• Ultra Compact Construction • Tank Pressure in Breathing Apparatuses
• Hermetically Isolated Sensor Technology • Agriculture - Sprayers and Dusters
• Refrigeration - Freon and Ammonia Based

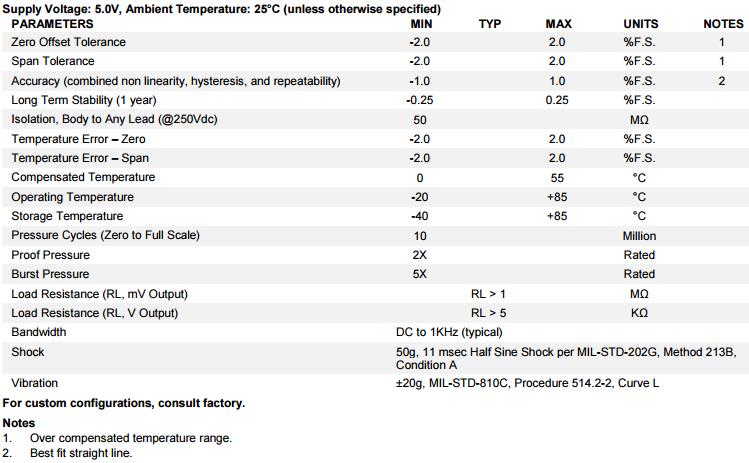

PERFORMANCE SPECIFICATIONS
