SPD...G Gauge Pressure Sensor With Bridge Output
Product Quick Detail
- Minimum Order
- 1
- Brand Name
- Smartec
- Place Of Origin
- Netherland
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
SPD…G SMARTEC PRESSURE SENSOR Bridge Output
Features
* Commercial grade
* DIP version for high volume production
* Gauge or absolute pressure
* Resistive bridge technology
* Voltage or current excitation
Applications
* Medical applications
* Blood pressure
* Portable Gauges
* Process control
* HVAC controls
Product description

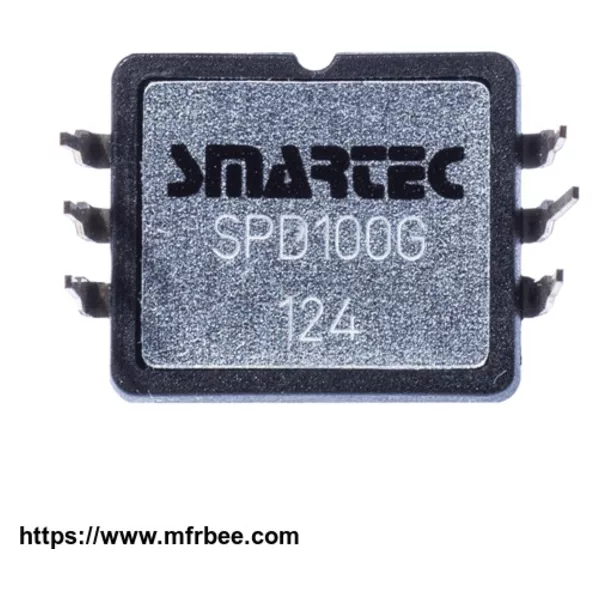

The Smart Pressure Device SPD series of pressure sensors are silicon based and encapsulated in modified plastic Dual In Line packages, to accommodate six pins for through-board printed circuit
mounting.
The sensors come in two distinct types: Gauge and absolute. The gauge type merely measures the pressure with respect to the atmospheric pressure. The absolute type contains a reference vacuum
chamber, which is formed on the die during manufacturing.
The output voltages of both types are proportional to the pressure that is measured.
Various pressure ranges are available. On request, other ranges and encapsulations can be supplied. Please contact our sales department for more information.
Because of its bridge resistance value, the SPD pressure sensor is especially suited for use in combination with the Universal Transducer Interface (UTI03), which gives an easy and very accurate
interface to a digital environment.
SPD bridge series Performance Characteristic
(Measured @5V excitation and 25 °C.)| Parameter | Min | Typ | Max | Units. |
| Excitation voltage | 0 | 5 | 10 | V |
| Excitation current | 1,5 | 3 | mA | |
| Offset | -50 | 0 | 50 | mV |
| Linearity | -0,3 | ±0,1 | 0,3 | %FS |
| Bridge Impedance | 2.7 | 3.3 | 4.0 | KΩ |
| TC Span (0-50°C) | -27 | -22 | -17 | %FS/100°C |
| TC Offset (0-50°C) | -7 | 7 | %FS/100°C | |
| TC bridge resistance | 23 | 28 | 33 | %FS/100°C |
| Hysteresis | 0,15 | % of range | ||
| Repeatability 1) | ±0,2 | ±0,5 | FSO | |
| Response time (10-90%) | 1 | ms | ||
| Pressure overload | 1,35 | Pa (*105 ) | ||
| Operating temperature | -20 | 85 | °C | |
| Storage temperature | -30 | 125 | °C |
| For SPD005G and SPD100G only | ||||
| Offset | -20 | 0 | 20 | mV |
| Bridge Impedance | 4 | 5 | 6 | KΩ |
| Type | Range | (*105 Pa) | Min | Typ(FS) Max | Unit |
| 015A | 0- 1 abs | 90 | 130 | 175 | mV |
| 005G | 0 - 0.350 | 40 | 60 | 80 | mV |
| 015G | 0 - 1 | 100 | 140 | 175 | mV |
| 030G | 0 - 2 | 120 | 160 | 200 | mV |
| 100G | 0 - 6.5 | 70 | 100 | 130 | mV |
1 Pa = 0.145* 10-3 psi or 1 PSI = 6.89476*103 Pa
1 Bar = 105 Pa = 105 N/m 2
Ordering information
| Part no. | Pressure range |
| SPD005G | 0- 0.35 105 Pa (Gauge) |
| SPD015G | 0- 1.0 105 Pa - |
| SPD030G | 0- 2.0 105 Pa - |
| SPD100G | 0- 6.5 105 Pa - |
| SPD015A | 0- 1.0 105 Pa (Absolute, SOIC6) |
| Other pressure ranges on request |
