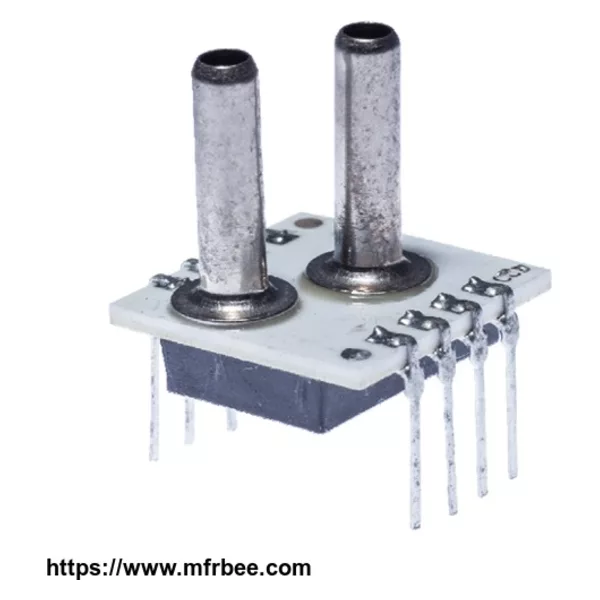

SPD102SAhyb Differential Pressure Sensor With Analogue Output
Product Quick Detail
- Minimum Order
- 1
- Brand Name
- Smartec
- Place Of Origin
- Netherland
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
SPD102SAhyb Pressure Sensor
SPECIAL LOW PRESSURE RANGE DIFFERENTIAL SENSOR WITH ANALOGUE OUTPUT (SINGLE VERSION)
This Smartec differential pressure sensor has an amplified analogue output. The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity. The sensor has a range of 0.15 PSI FS and the output is ratiometric to the power supply voltage. Other pressure ranges on request ( 0.3 – 100 PSI). When no pressure is applied output Voltage is minimal; single type.
Electrical Characteristics
| Parameter | Min | Typ | Max | Units |
| Supply Voltage | 4.75 | 5.00 | 5.25 | V |
| Supply Current | - | 2.5 | mA | |
| Pressure range (fs) | 0 | 0.15 | psi | |
| Zero Output | 0.412 | 0.500 | 0.588 | Vdc@0psi |
| Span Output (FS) | 4.00 | Vdc@0.15psi | ||
| Response time | 1 | 2 | ms | |
| Linearity | -0.5 | +0.5 | %FS | |
| Thermal Hysteresis | -0.15 | +0.15 | %FS | |
| Accuracy | +2.2 | %FS | ||
| Temp coeff. Span | -2 | +2 | %FS | |
| Pressure overload | 3X | rating | ||
| Temp compensation | 0 | 50 | °C | |
| Operating Temp range | -10 | 70 | °C | |
| Storage temperature | -40 | 125 | °C |
Wetted materials are: Pyrex glass, RTV, Ceramic, Nickel and Silicon
The output is ratiometric to Vcc
